Manufacturer: Hikvision

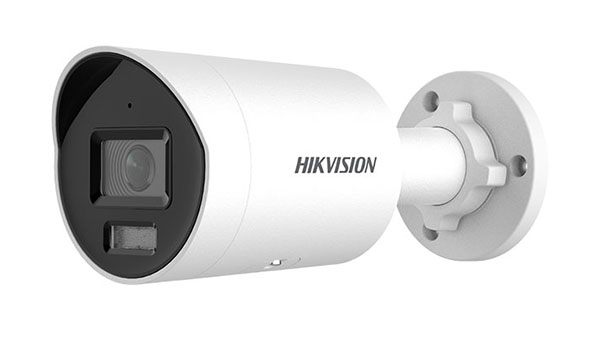

Hikvision DS-2CD2067G2-LU(C) 6MP ColorVu Mini Bullet 4mm

HIKVISION DS-2CD2067G2-LU(C) 6MP COLROVU MINI BULLET 4mm
SKU: 114-600-4

6MP ColorVu Fixed Mini Bullet Network Camera

  • High quality imaging with 6MP resolution
  • 4mm lens
  • 24/7 colour imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)

Camera

  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution3200 × 1800
  • Min. IlluminationColor: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time1/3 s to 1/100,000 s
  • Day & Night24/7 color imaging
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

  • Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV

    2.8mm, Horizontal FOV: 109°, Vertical FOV: 59°, Diagonal FOV: 130°

    4 mm, Horizontal FOV: 93°, Vertical FOV: 49°, Diagonal FOV: 111°

    6 mm, Horizontal FOV: 57°, Vertical FOV: 30°, Diagonal FOV: 67°

  • Lens MountM16
  • Iris TypeFixed
  • ApertureF1.0
  • Depth Of Field

    2.8 mm: 3.1 m to ∞

    4 mm: 3.5 m to ∞

    6 mm: 8.2 m to ∞

DORI

  • DORI

    2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m

    4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m

    6 mm, D: 168 m, O: 66 m, R: 33 m, I: 16 m

Illuminator

  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 40 m
  • Smart Supplement LightYes

Video

  • Main Stream

    50 Hz:

    25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz:

    24 fps (3200 × 1800)

    30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream

Audio

  • Audio Type-U: Mono sound
  • Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering-U: Yes

Network

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


  • Image Parameters SwitchYes
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)130 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC,HLC,3D DNR
  • Privacy Mask4 regions of privacy mask

Interface

  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage



    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

  • Built-In Microphone-U: Yes
  • Reset KeyYes

Event

  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,supplement light

Deep Learning Function

  • Face CaptureYes

General

  • Power

    12 VDC ± 25%, 0.5 A, max. 6.0 W,reverse polarity protection,

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W

  • MaterialMetal
  • Dimension



    Ø74.4 mm × 179.2 mm (Ø2.9 × 7.1\")"

  • Package Dimension234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
  • WeightApprox. 520 g (1.1 lb.)
  • With Package WeightApprox. 760 g (1.7 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams

Approval

  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013

Brochure

6MP ColorVu Fixed Mini Bullet Network Camera

  • High quality imaging with 6MP resolution
  • 4mm lens
  • 24/7 colour imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)
