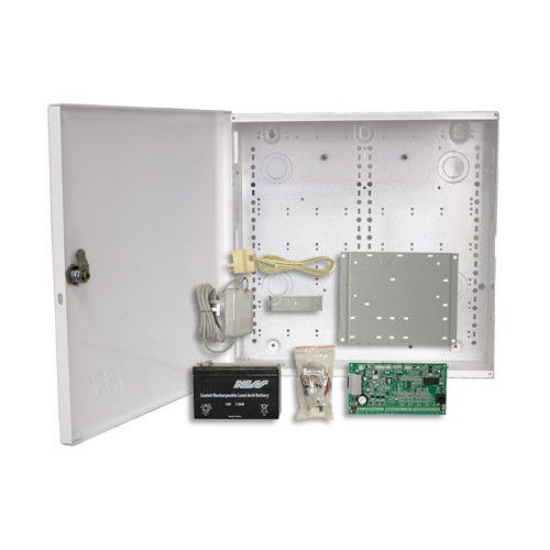

| D8X Control Panel |
| BOX DIMENSIONS (W - H - D) |
362 mm wide, 362mm high, 89 mm deep |
| POWER INPUT |
17VAC or 20VDC |
| AUX POWER OUTPUT |
13.8v DC @ 800mA |
| QUIESCENT CURRENT DRAW |
80mA with 1 keypad |
| RECHARGEABLE BATTERY |
12 volt 7.0 Amp/hour Sealed lead Acid |
| BATTERY CHARGING CURRENT |
350mA maximum, current limited |
| DYNAMIC BATTERY TEST |
Backup battery is tested under load, hourly and on arming |
| FUSES |
2 Amp auto resetting
Siren output & Reset output. 500mA auto resetting
12 volt auxiliary outputs. 200 mA auto resetting
Strobe output |
| ZONE OUTPUTS |
8 zone inputs. 2 x 24hr tamper inputs |
| END OF LINE RESISTOR |
Choice of 12 programmable values including N/C. Default 2200 Ohms (2.2k) |
| MAXIMUM KEYPADS |
3 x Navigator Touch Keypads max. |
| INTEGRATED RADIO OPTIONS |
Multi-pin connector for the optional Ness Radio Interface.
Supports up to 55 Radio keys . Up to 16 radio zones |
| SERIAL HEADER |
Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data |
| INTEGRATED ACCESS CONTROL |
Multi-pin connector the optional Weigand Interface.
Supports up to 3 Ness proximity access card readers |
| SIREN OUTPUT |
On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers |
| STROBE OUTPUT |
12v DC timed output. Maximum 2 x 1 Watt strobe lights |
| RESET OUTPUT |
12v DC timed output. Max. 3 x 12v piezo screamers |
| EQUIPMENT POWER OUTPUT |
13.8v DC output for powering detectors and other equipment. Maximum 500mA |
| AUX READER |
Multi-pin connector provides outputs Aux1, Aux2, Aux3, Aux4, 12v DC |
