Manufacturer: Ness Corporation

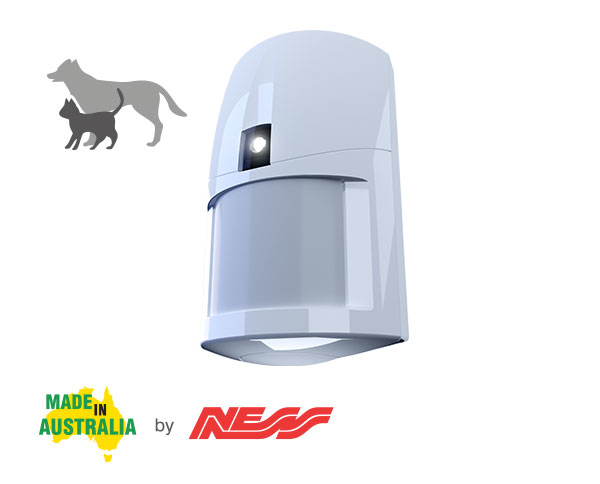

NESS LUX PET PIR 304MHz

Modern innovative PIR providing intrusion protection
SKU: 106-170

Another Bright Idea

Ness LUX Radio PIR is a unique wireless motion detector with a white LED night-light especially designed for the latest generation of Ness radio control panels.

LUX shares all the features and benefits of the Ness Radio PIR range including 15m x 15m detection coverage, look-down creep zone, high RF immunity, white light immunity, adjustable range, adjustable pulse count and extremely long battery life.* Ceiling mounting is also available with the addition of a 106-169

For safety and convenience, LUX’s night-light function provides a motion-activated cone of light to help you find your way at night. The night-light remains lit as long as it detects motion and stays on for an extra 10 seconds after motion has stopped.

LUX PET AWARE model with unique Opposing Fields lens technology has a superior ability to discriminate between household pets and unwanted human intruders allowing you to secure your home with your pets indoors.

Compatible with Ness one way radio receivers and Ness control panels when used with the 100-200 Ness Radio Interface.

Supplied With

  • PIR
  • 2 x CR123A batteries
  • Manual
  • Wall Mounting Bracket

* Typical battery life up to 5 years depending on motion detection activations and white light settings.

Made In Australia Made In Australia by NESS

• 15m x 15m wide angle coverage
• Pet immune to a single animal up to 18kg
• White LED motion activated night-light
• Adjustable Pulse Count
• Adjustable Range
• High R.F. and E.S.D. immunity
• High white light immunity
• SAWR stabilised radio transmitter
• Capsule design with sealed electronics
• Long life Lithium batteries supplied
• Low battery warning signal
• Hourly Supervision radio signals
• Includes wall mounting bracket
• Optional ceiling bracket available

DIMENSIONS 112(h) x 72(w) x 48(d) mm
MOUNTING HEIGHT 2.1m – 2.4m
COVERAGE Up to 15m x 15m @ 90°
DETECTOR ZONES 20 dual element zones
PULSE COUNT Selectable 1–2 or 3–4
RANGE Selectable High/Low. 15m max./12m max.
SENSOR Dual element pyroelectric
ALARM INDICATION Blue alarm LED
NIGHT-LIGHT White LED with adjustable threshold, Dark/Dim Light
ALARM PERIOD 5 seconds
OPERATING VOLTAGE 3V DC
BATTERY 2 x CR123A Lithium
QUIESCENT CURRENT        < 14μA
RADIO FREQUENCY 304MHz
TRANSMIT POWER 100μW
