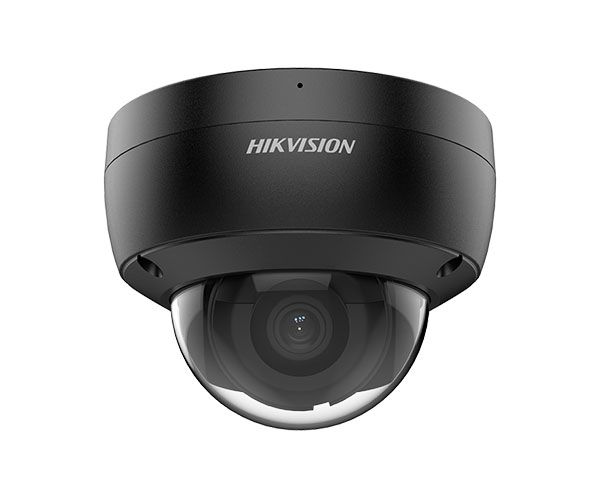

Hikvision DS-2CD2166G2-ISU 6MP Acusense Dome 2.8mm BLACK

Camera

• Image Sensor1/2.4" Progressive Scan CMOS
• Max. Resolution3200 × 1800
• Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;

  4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6

DORI

• DORI

  2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;

  4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream

Audio

• Audio Type-U: Mono sound
• Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-U: Yes

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask4 programmable polygon privacy masks

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-In Microphone-U: Yes
• Audio-S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
• Alarm-S: 1 input, 1 output (TTL: max. 12 VDC, 30 mA)
• Reset KeyYes

Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception, alarm input and output (-S)
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output (-S), audible warning (-S)

Deep Learning Function

• Face CaptureYes

General

• Power

  12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 7.5 W

• MaterialAluminum alloy body, bubble: plastic
• DimensionØ121.4 mm × 92.2 mm (Ø4.8" × 3.6")
• Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• WeightApprox. 440 g (1.0 lb.)
• With Package WeightApprox. 670 g (1.47 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language



  33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker

Approval

• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
