Manufacturer: Ness Corporation

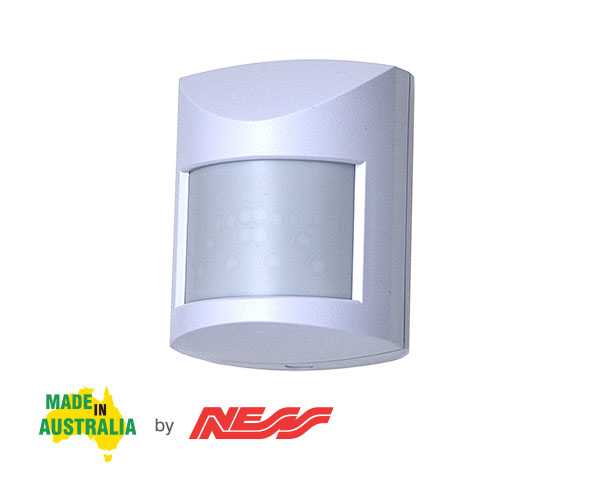

NESS QUANTUM QUAD PET PIR DETECTOR

Offering quality, performance and reliability
SKU: 106-259

Secure your Home

The Ness Quantum-Q PET with QUAD Element Pyro Sensor for a better detection rate and higher noise immunity for lower false alarms.

Quantum-Q is Australian designed and made by NESS using precision S.M.D. technology. With enhanced 15 metre wide-angle coverage, selectable Pulse Count and Sensitivity adjustments providing the flexibility to use the Quantum-Q in most environments.

Pet Immunity is set typically for a single pet up to 18kg or multiple pets up to 10kg total.

Very discrete in size, designed for all types of interiors with a detection range of 15m.

  • Quad element pyro sensor
  • 15m x 15m wide-angle coverage
  • Standard (Std model refer to Ness Part No. 106-079) and Pet Aware models
  • Adjustable Pulse Count
  • Adjustable Range
  • High R.F. and E.S.D. immunity
  • High white light immunity
  • High quality patented Fresnel lens
  • Front cover tamper protection
  • Totally silent solid state relay with high immunity to magnetic fields
  • Optional mounting bracket available
  • 9~15VDC Operation

Optional ceiling mount bracket using the Quantum Swivel Brackets - Ness Part No. 100-243.

Made In Australia Made In Australia by NESS

MOUNTING HEIGHT 1.1m min, 3.1 max, 2.1m-2.3m for optiomal detection
COVERAGE 15m x 15m @ 90°
DETECTION ZONES 20 QUAD element zones
PET IMMUNITY Single pet up to 18kg or multiple pets up to 10kg total
RANGE SELECT Selectable High/Low  (15m/12m)
PULSE COUNT Selectable 1–2 or 3–4.
VISUAL DISPLAY Red Alarm LED
OPERATING VOLTAGE 9 - 15 VDC
DIMENSIONS (H-W-D) 85 x 66 x 45 mm
ALARM PERIOD 5 seconds
WARM UP PERIOD 30 seconds
CURRENT DRAW 7mA
ALARM OUTPUT Normally closed relay, dry contacts. Max. 100mA@24V
TAMPER OUTPUT Normally closed dry contacts
