Manufacturer: Hikvision

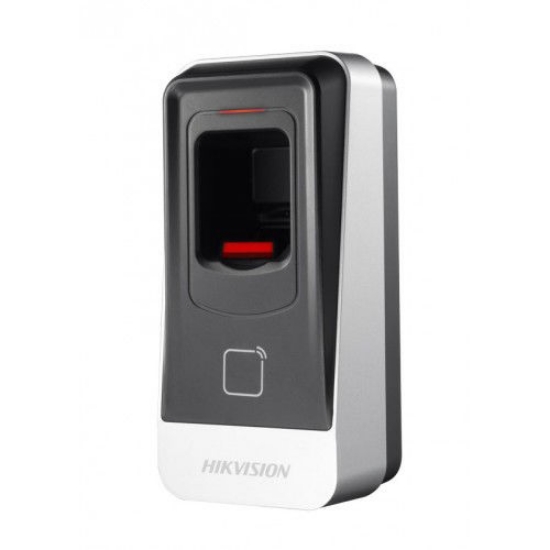

HIKVISION DS-K1201MF

Biometric Fingerprint Reader
SKU: 114-126

Hikvision DS-K1201MF Biometric Fingerprint Reader with Inbuilt Card Reader

The Hikvision DS-K1201MF Fingerprint and card reader, designed with a 32-bit high-speed processor, contains the optical fingerprint recognition module. It communicates with Hikvision access controller via the RS-485 protocol. And a built-in tamper-proof module helps to protect the card reader from malicious damage. The protective level is IP65, which is suited for outdoor installation.

  • A group of encrypted code data for the security of fingerprint storage. (Stores an encrypted template, not a fingerprint Image)
  • Supports RS485 communication with 19200bps-N-8-1 transmission rate.
  • Supports Mifare card reading (DS-K1201MF)
  • Card reading range ≤50mm
  • Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
  • Max. 5000 fingerprints storage
  • Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
  • Fingerprint comparison time: 1:1≤1s, 1:1000≤1s; FRR≤0.01%, FAR≤0.001%
  • The communication circuit is designed with optical coupling isolation and noise suppression function
  • Built-in buzzer for status indication
  • Accurate data and time display provided by a built-in electronic clock and watchdog program to ensure the basic functionality of the terminal
  • Tamper-proof function.
System Parameters
Comparison Mode: 1:1/1:N
Comparison Time: 1:1≤1s; 1:3000≤1.5s
Fingerprint Module: Optical, Red Backlight
FRR (False Rejection Rate): ≤0.01%
Card Reading Distance: Mifare Card:≤50 mm
FAR (False Accept Rate): ≤0.001%
Card Reading Mode: Mifare Reading Module
Fingerprint Capacity: 5,000
Processor: 32 Bit High-performance Processor
Device Interfaces
Communication Mode: RS-485
Transmission Rate: 19200bps-N-8-1
General
Mounting Method: Surface Mounting
Alarm: Tamper Alarm × 1
Power Supply: 12VDC
Prompt: Buzzer
LED Indicator: Power Indicator; Status LED Indicator
Protection Level: IP 65
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -40°C to +70°C (-40°F to +158°F)
Dimensions (L×W×H): 62mm × 132mm × 44mm (2.44" × 5.20" × 1.73")
