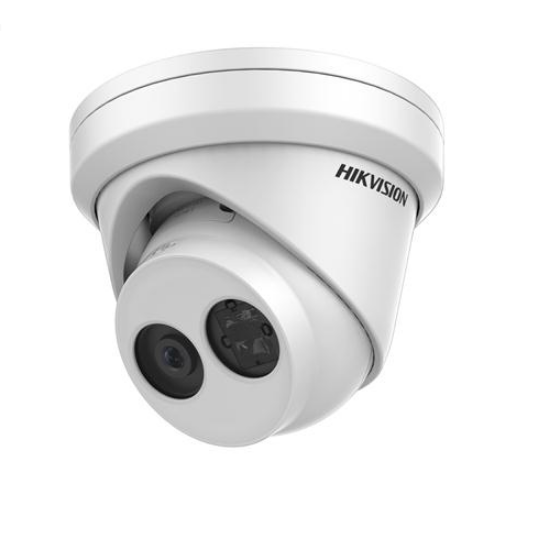

| Camera |
|---|
| Image Sensor: |
1/2.5" Progressive Scan CMOS |
| Signal System: |
PAL/NTSC |
| Min. Illumination: |
Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter time: |
1/3 s to 1/100,000 s |
| Slow shutter: |
Support |
| Lens: |
12 mm, horizontal field of view: 50° |
| Lens Mount: |
M12 |
| Adjustment Range: |
Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° |
| Day& Night: |
IR cut filter with auto switch |
| Wide Dynamic Range: |
120 dB |
| Digital noise reduction: |
3D DNR |
| Compression Standard |
|---|
| Video Compression: |
H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate: |
32Kbps~16Mbps |
| Triple Streams: |
Yes |
| Image |
|---|
| Max. Image Resolution: |
3840 × 2160 |
| Frame Rate: |
50Hz: 20 fps (3840 × 2160), 25 fps
(2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps
(2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream: |
50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 240) |
| Third Stream: |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement: |
BLC/3D DNR |
| Image Settings: |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable
by client software or web browser |
| Target Cropping: |
Support |
| ROI: |
Support 1 fixed region for each stream |
| Day/Night Switch: |
Auto/Scheduled |
| Network |
|---|
| Protocols: |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP,
RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function: |
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering |
| System Compatibility: |
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface |
|---|
| Communication Interface: |
1 RJ45 10M / 100M Ethernet interface |
| On-board storage: |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Smart Feature-set |
|---|
| Behavior Analysis: |
Line crossing detection, Intrusion detection, Unattended baggage detection,
Object removal detection |
| Line Crossing Detection: |
Cross a pre-defined virtual line |
| Intrusion Detection: |
Enter and loiter in a pre-defined virtual region |
| Unattended Baggage: |
Objects left over in the pre-defined region such as the baggage, purse,
dangerous materials |
| Object Removal: |
Objects removed from the pre-defined region, such as the exhibits on display. |
| Recognition: |
Face Detection |
| General |
|---|
| Operating Conditions: |
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) |
| Power Supply: |
12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: |
12 VDC ± 25%, 6.2W
PoE(802.3af, class 3), 9W |
| Weather Proof: |
IP67 |
| IR Range: |
Up to 30m |
| Dimensions: |
Camera: Φ 127.3 × 95.9 mm (5.01″ × 3.78″)
Package: 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″) |
| Weight: |
620 g (1.37 lb.) |
