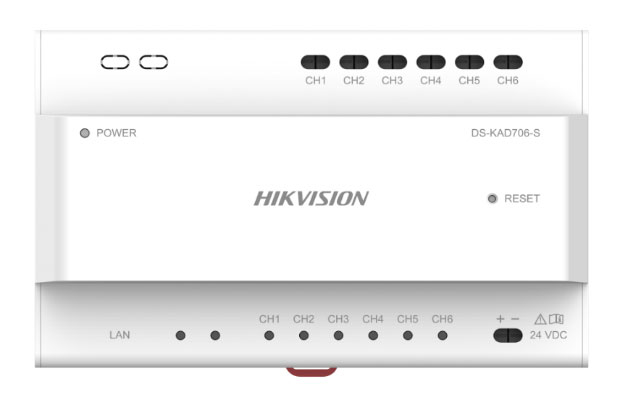

Picture of HIKVISION DS-KAD706-S 2 Wire Controller

HIKVISION DS-KAD706-S 2 Wire Controller

HIKVISION DS-KAD706-S

SKU: 104-886S

Overview
Specifications
Downloads
Mobile Apps

Two wire controllers

2-wire IP distributor
6 2-wire cascade interfaces without device power supply
6 interface indicators, 1 RJ-45 Interface, 1 Reset button
Din rail mounting, 24VDC
Required to expand a 2-wire system to 6 more apartments

Device Interfaces

Network Interface
1, RJ45 (1-ch reserved terminal and 1

for WAN access)
Two-Wire Interface
6-ch for data exchanging
Signal Indicator6 indicators for displaying 6-ch signals
Power Indicator1
Reset1

General

Power Supply24 VDC
Power Consumption< 7 W
Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
Working Humidity10% to 90%

Hikvision App Store

Two wire controllers

2-wire IP distributor
6 2-wire cascade interfaces without device power supply
6 interface indicators, 1 RJ-45 Interface, 1 Reset button
Din rail mounting, 24VDC
Required to expand a 2-wire system to 6 more apartments
