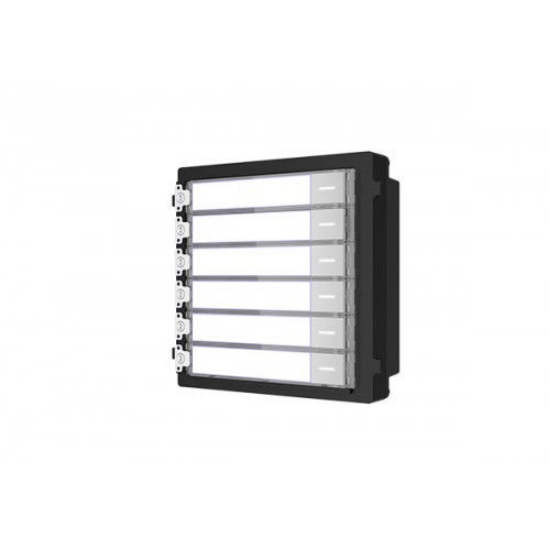

Picture of HIKVISION DS-KD-KK Name Tag Unit
Manufacturer: Hikvision

HIKVISION DS-KD-KK Name Tag Unit

IP Intercom Nametag Module
SKU: 104-928NT

Hikvision DS-KD-KK Video Intercom Nametag Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides simple dial-up of apartments with the push of the associated nametag button. Up to 8 modules can be connected to a single DS-KD8003-IME1 Door Station unit.

KD8 Series Pro Modular Door Station

  • Modular door station Nametag unit, needs mounting accessories
  • 6 call buttons, including 4 button covers, IP65
  • Dial the resident at one-touch
  • Backlight compensation
  • Easy to extend




System Parameters
Operation method: Physical Button
Processor: Embedded MCU Processor
Device Interfaces
Debug: 1
Module-connecting: 2(1 Input, 1 Output)
General
DIP switch: 8
Installation: Flush Mounting, Surface Mounting
Power Supply: Powered by DS-KD8003-IME1
Power Consumption: ≤2W
Physical button: 6
Working Humidity: 10% to 95%
Working Temperature: -40° C to +60° C (-40° F to 140° F)
IP Protection Level: IP65
Dimensions(L × W × H): 98.21mm×100.21mm×33.7mm(3.87"×3.95“×1.33”)

Brochure

Hikvision DS-KD-KK Video Intercom Nametag Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides simple dial-up of apartments with the push of the associated nametag button. Up to 8 modules can be connected to a single DS-KD8003-IME1 Door Station unit.

KD8 Series Pro Modular Door Station

  • Modular door station Nametag unit, needs mounting accessories
  • 6 call buttons, including 4 button covers, IP65
  • Dial the resident at one-touch
  • Backlight compensation
  • Easy to extend
