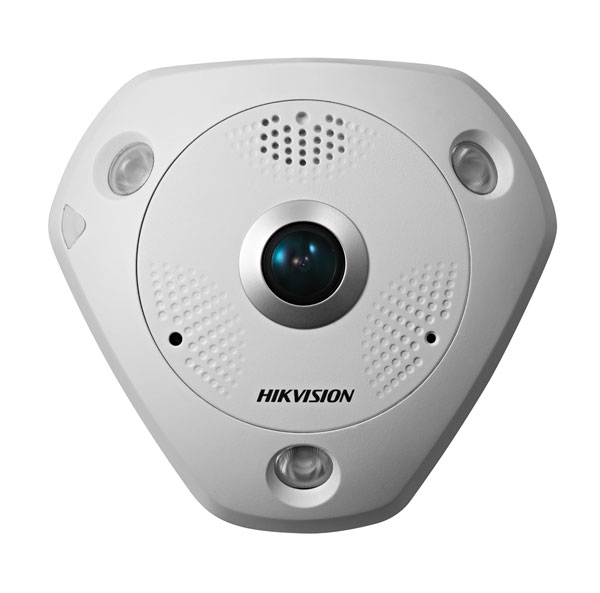

HIKVISION DS-2CD63C5G0-IS 12MP Fisheye Camera

Camera

• Image Sensor1/1.7″ Progressive Scan CMOS
• Min. Illumination

  Color: 0.05 Lux @ (F2.2, AGC ON),

  B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR



• Shutter Speed1 s to 1/100,000 s
• Slow ShutterSupport
• DNR3D DNR
• WDRDigital WDR
• Day & NightIR cut filter

Lens

• ApertureF2.2
• FocusNo
• FOVHorizontal FOV: 180°, vertical FOV: 180°
• Lens MountM12
• Focal Length1.29 mm

Audio

• Audio Compression8 kHz/16 kHz
• Environment Noise Filteringyes
• Audio I/O

  2 built-in microphones, 1 built-in speaker, mono sound

  -S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)




• Image EnhancementBLC, HLC, defog, 3D DNR
• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
• Sub-Stream

  50Hz: 20fps (720 × 720, 640 × 480)

  60Hz: 20fps (720 × 720, 640 × 480)



• Max. Resolution4000 × 3000
• Main Stream

  50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560)

  60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)



Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users. 3 user levels, administrator, operator and user
• ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200, Hik-Central
• Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+
• DetectionSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
• General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version5.5.73

Interface

• Communication Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
• Alarm1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
• On-Board StorageSupport microSD/SDHC/SDXC card (256 G)

Compression Standard

• H.264+Main stream supports
• H.265+Main stream supports
• H.264 TypeBaseline Profile/ Main Profile /High Profile
• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub stream: H.265/H.264/MJPEG



• H.265 TypeMain Profile
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Video Bit Rate32 Kbps to 16 Mbps
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

IR

• IR RangeUp to 15 m IR range, 3 LEDs. Each LED is independently controlled.
• Wavelength850nm

Live View Display

• Display Mode

  18 display modes in total

  Software decoding:

  Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, hemisphere, AR hemisphere, cylinder

  Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ

  Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder

  Hardware decoding:

  Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

  Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

  Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion



Smart Feature-Set

• Exception DetectionAudio exception detection
• Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
• Region Of Interest4 fixed regions for main stream

General

• Power Supply

  12 VDC±20%, PoE (802.3at, class 4),

  -S model: two-core terminal block

  Without –S model: Φ 5.5 × 2.1 mm coaxial power plug

• Approx. 1400 g (3.09 lbs)
• Power Consumption

  12 VDC, 1 A, max. 12.5 W s

  PoE (802.3at, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W



• Wiper No
