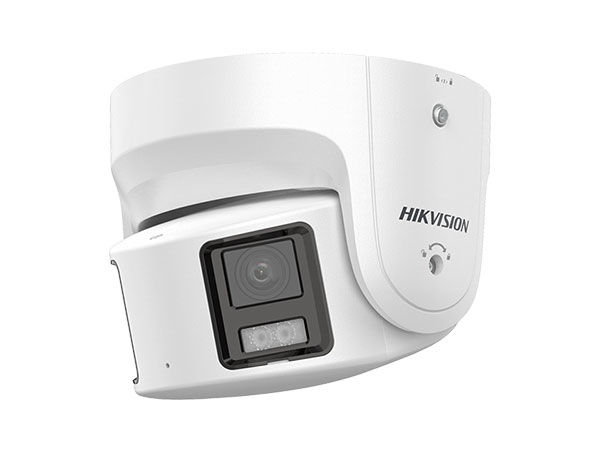

Hikvision DS-2CD2387G2P-LSU/SL 8MP ColorVu Turret Dual Head 4mm

Camera

• Image Sensor2 × 1/1.8" Progressive Scan CMOS
• Max. Resolution5120 × 1440
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Angle AdjustmentPan: -30° to 30°,tilt: -75° to 75°

Lens

• Lens TypeFixed focal lens, Dual lens: 4 mm
• Focal Length & FOV4 mm, horizontal FOV: 180°, vertical FOV: 44°
• Lens MountM16
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field3.6 m to ∞

DORI

• DORI4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes

Video

• Main Stream

  When WDR is On:

  50 Hz: 12.5 fps (5120 × 1440)

  60 Hz: 15 fps (5120 × 1440)

  When WDR is Off:

  50 Hz: 20 fps (5120 × 1440)

  60 Hz: 20 fps (5120 × 1440)

• Sub-Stream

  When WDR is On:

  50 Hz: 12.5 fps (1920 × 536, 960 × 272)

  60 Hz: 15 fps (1920 × 536, 960 × 272)

  When WDR is Off:

  50 Hz: 20 fps (1920 × 536, 960 × 272)

  60 Hz: 20 fps (1920 × 536, 960 × 272)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region(s) for main stream

Audio

• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11 ,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

  Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters SwitchYes
• Image Settingssaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)130 dB
• SNR≥ 52 dB
• Image EnhancementBLC,HLC,3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
• Built-In MicrophoneYes
• Built-In SpeakerMax. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
• Audio

  1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 24 VDC, 1 A)
• Reset KeyYes

Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Deep Learning Function

• Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))

General

• Power

  12 VDC ± 25%, 0.79 A, max. 9.5 W,Ø5.5 mm coaxial power plug,

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W

• MaterialBase: metal, cover: metal
• Dimension



  Ø155 mm × 155.3 mm (Ø6.1 × 6.1\")"

• Package Dimension230 mm × 230 mm × 230 mm (9" × 9" × 9")
• Approx. 1110 g (2.4 lb.)
• With Package WeightApprox. 1900 g (4.2 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionAnti-flicker, heartbeat, password reset via email, password protection, one-key reset
• Flashing LightYes

Approval

• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
