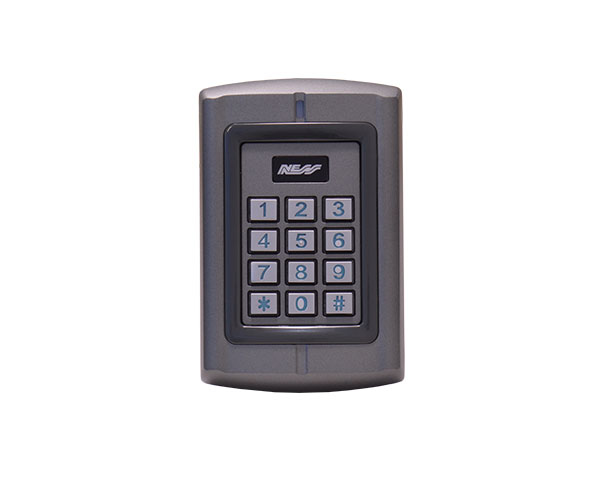

Multifunction Access Controller
The Ness UltraProx S2B is a single door stand-alone multi-function access controller Keypad and Card Reader with Wiegand output.
The access control is anti-vandal and waterproof design. It supports PIN and 125KHZ EM card, 3 access modes are optional.
Wiegand 26 bit output, which allows this to not only be a reader with the controller, but also as a slave proximity reader (with the keypad to allow for manually entering 4 Digit Code) when connected to 3rd party Access controllers. When using as a slave reader, no internal programming is required.
- Metal structure, anti-vandal, more secure, waterproof design
- Backlight Keypad, convenient for operating in the night.
- Large capacity: 2,500 users
- Support 3 Modes Access: Card, PIN, Card+PIN.
- Card Type: 125KHz EM, PIN length: 4 digits.
- Operating Voltage: 12-18V AC/12-24V DC.
- Very low power consumption ( ≤35mA), long service life and stable performance.
- Machine code setting: 1-255 can be set as facility codes.
- High-speed search: filled with 2,500 users, the search time < 0.1s
- Manage cards: the manage cards can add/delete the users directly, very convenient
- Wiegand 26 bit output, can work as Wiegand reader/Controller.
- Protective Properties: IP65 fully-potted. with anti-disassemble, alarm function, anti-static interference 15KV.
Non-addressable version, not suitable for systems requiring multiple keypads.
Also see 101-082 S2 Advanced Ultraprox Keypad Reader Addressable
