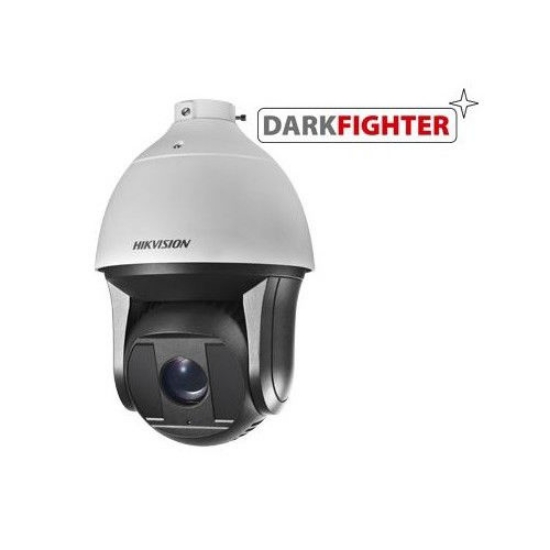

Picture of HIKVISION DS-2DF8225IX-AEL PTZ Darkfighter 2MP 25X
Manufacturer: Hikvision

HIKVISION DS-2DF8225IX-AEL PTZ Darkfighter 2MP 25X

2MP Darkfighter, 25X, 200m IR PTZ
SKU: 104-656

2MP Smart PTZ Low Light Darkfighter Camera

Hikvision Darkfighter series DS-2DF8225IX-AEL smart PTZ dome cameras are able to capture high quality coloured images in a dim light environment with its cutting-edge low illumination level down to 0.002Lux (colour). Embedded with 1/1.9’’ progressive scan CMOS chip makes true WDR (120dB) and 2MP real-time resolution possible. With the 25X optical zoom Day/Night lens, the camera offers more details over expansive areas.

The Darkfighter PTZ camera also features a wide range of smart functions, including; face detection, intrusion detection, line crossing detection and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events/objects being recorded for further forensic needs. These features, combined with smart tracking, which enables the camera to detect any progressively moving object and follow it within the camera’s area of coverage without fault. Smart Defog and EIS (Electronic Image Stabilization) are further supported to improve image quality in challenging conditions.

Hikvision DS-2DF8225IX-AEL 2MP, 25X, 200m IR, IP66, IK10, smart features ,Ture WDR,Rapid focus,H.265+/H.265/H.264+/H.264, Darkfighter Ultra-low illumination technology(Color: 0.002 lux/F1.5, B/W:0.0002 lux/F1.5), 2MP, 1/1.9’’ CMOS sensor, 120dB WDR, Pan range:360° endless; Tilt range: -20°~90°(Auto Flip), Pan Speed: 0.1°~210°/s, Tilt Speed: 0.1°~150°/s, Optical zoom:25x, Focus:5.7-142.5 mm, smart tracking, smart detection, Rapid focus,200m IR, IP66, IK10, Hi-PoE&24VAC.



Mounting Options

  • Long-arm wall mount: DS-1602ZJ
  • Corner mount: DS-1602ZJ-corner;
  • Pole Mount: DS-1602ZJ-pole;
  • Power box mount:DS-1602ZJ-box;
  • Swan-neck mount: DS-1619ZJ
  • 1/1.9” HD CMOS sensor
  • H.265+/H.265/H.264+/H.264
  • 2MP(1920*1080) Full HD
  • 25X Optical Zoom
  • Ultra-low illumination
  • 120db True WDR
  • Smart Tracking
  • Smart Detection
  • EIS (Electronic Image Stabilization)
  • Defog
  • 200m IR distance
  • Optional wiper(-W)
  • Hi-PoE / 24VAC power supply
Camera
Image Sensor: 1/1.9" progressive scan CMOS
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
White Balance: Auto / Manual
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: 120dB
Shutter Time: 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Masking: 24 privacy masks programmable
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 5.7 mm to 142.5 mm, 25× Optical
Zoom Speed: Approx. 3.7 s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 59.8° to 2.8° (wide-tele)
Vertical field of view: 33.6° to 1.6° (wide-tele)
Diagonal field of view: 68.6° to 3.2° (wide-tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.5~F3.4
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt Range: -20°~90°(Auto Flip)
Tilt Speed: Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan /
Panorama scan
PTZ Position Display: ON/OFF
Freeze Frame: Support
Smart-tracking: Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger
/ Region exiting trigger
Wiper: Optional
Infrared
IR irradiation distance: 200m
IR irradiation angle: Adjustable by zoom
Alarm
Alarm Input: 7 Inputs
Alarm Output: 2
Alarm Actions: Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output,
Notification on Client, Send Email, Upload to FTP, Trigger Channel
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
50fps (1920 × 1080, 1280 × 960, 1280 × 720);
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480,
640x480,352×240)
Third Stream: 50Hz: 25fps(704×576, 640×480, 352×288);
60Hz: 30fps(704×480, 640×480, 352×240)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: Support
Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Mode: OFF/Audio input/Audio output
No. of Simultaneous Users: Up to 20 users
Three-Stream: Support
Mini SD Card: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris,
preset calling and programming, auto mode
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200
Web Browser: IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 +
General
Power Consumption: 24 VAC (Max. 60 W)
Hi-PoE (Max. 50 W)
Working Temperature/Humidity: -40°C ~ 65°C (-40°F ~ 149°F)
Protection Level: IP66 Standard, IK10 (only supported by camera without wiper),
TVS 6,000V Lightning Protection, Surge Protection and
Voltage Transient Protection
Dimensions: Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
Weight (approx.): 8kg (approx.17.64lb)

Brochure

2MP Smart PTZ Low Light Darkfighter Camera

Hikvision Darkfighter series DS-2DF8225IX-AEL smart PTZ dome cameras are able to capture high quality coloured images in a dim light environment with its cutting-edge low illumination level down to 0.002Lux (colour). Embedded with 1/1.9’’ progressive scan CMOS chip makes true WDR (120dB) and 2MP real-time resolution possible. With the 25X optical zoom Day/Night lens, the camera offers more details over expansive areas.

The Darkfighter PTZ camera also features a wide range of smart functions, including; face detection, intrusion detection, line crossing detection and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events/objects being recorded for further forensic needs. These features, combined with smart tracking, which enables the camera to detect any progressively moving object and follow it within the camera’s area of coverage without fault. Smart Defog and EIS (Electronic Image Stabilization) are further supported to improve image quality in challenging conditions.

Hikvision DS-2DF8225IX-AEL 2MP, 25X, 200m IR, IP66, IK10, smart features ,Ture WDR,Rapid focus,H.265+/H.265/H.264+/H.264, Darkfighter Ultra-low illumination technology(Color: 0.002 lux/F1.5, B/W:0.0002 lux/F1.5), 2MP, 1/1.9’’ CMOS sensor, 120dB WDR, Pan range:360° endless; Tilt range: -20°~90°(Auto Flip), Pan Speed: 0.1°~210°/s, Tilt Speed: 0.1°~150°/s, Optical zoom:25x, Focus:5.7-142.5 mm, smart tracking, smart detection, Rapid focus,200m IR, IP66, IK10, Hi-PoE&24VAC.



Mounting Options

  • Long-arm wall mount: DS-1602ZJ
  • Corner mount: DS-1602ZJ-corner;
  • Pole Mount: DS-1602ZJ-pole;
  • Power box mount:DS-1602ZJ-box;
  • Swan-neck mount: DS-1619ZJ
