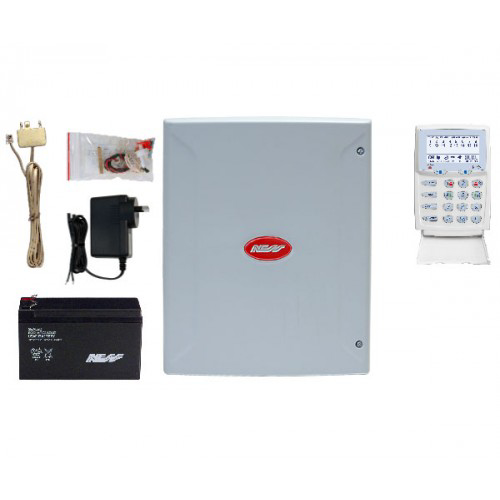

| Control Panel D16XD |
| BOX DIMENSIONS (W - H - D) | 235 x 300 x 90 mm |
| POWER INPUT | 17VAC or 20VDC |
| AUX POWER OUTPUT | 13.8v DC @ 800mA |
| QUIESCENT CURRENT DRAW | 80mA with 1 keypad |
| RECHARGEABLE BATTERY | 12 volt 7.0 Amp/hour Sealed Lead Acid |
| BATTERY CHARGING CURRENT | 350mA maximum, current limited |
| DYNAMIC BATTERY TEST | Backup battery is tested under load, hourly and on arming |
| FUSES | 2 Amp auto resetting / Siren output & Reset output.
500mA auto-resetting / 12 volt auxiliary outputs.
200 mA auto-resetting / Strobe output |
| ZONE OUTPUTS | 16 zone inputs. 2 x 24hr tamper inputs |
| END OF LINE RESISTOR | Choice of 12 programmable values including N/C.
Default 2200 Ohms (2.2k) |
| MAXIMUM KEYPADS | 3. |
| INTEGRATED RADIO OPTIONS | Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys. Up to 8 radio zones |
| SERIAL HEADER | Serial data port for direct connect programming using NessCommsTM software. Also 2-way serial data |
| INTEGRATED ACCESS CONTROL | Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers |
| SIREN OUTPUT | Onboard siren driver with timed output. Maximum 3 x 8 Ohm horn speakers |
| STROBE OUTPUT | 12v DC timed output. Maximum 2 x 1 Watt strobe lights |
| RESET OUTPUT | 12v DC timed output. Max. 3 x 12v piezo screamers |
| EQUIPMENT POWER OUTPUT | 13.8v DC output for powering detectors and other equipment. Maximum 500mA |
| AUX READER | Multi-pin connector provides outputs Aux1, Aux2, Aux3, Aux4, 12v DC |
