Manufacturer: Ness Corporation

D8XD SYSTEM WITH NAVIGATOR KEYPAD

D8X Deluxe panel WITH NAVIGATOR KEYPAD
SKU: K-6308

The New Face of your Alarm System

Ness D8XD Navigator Panel provides both the user and the installer with unrivalled ease of use. Its self-explanatory operation guides provide you with plain English displays and intuitive touch screen operation.

Ness Navigator makes it easy to view your entire system. Personalise the name of your rooms, get help and prompts for arming/disarming, home automation features, emergency alarms and much more.

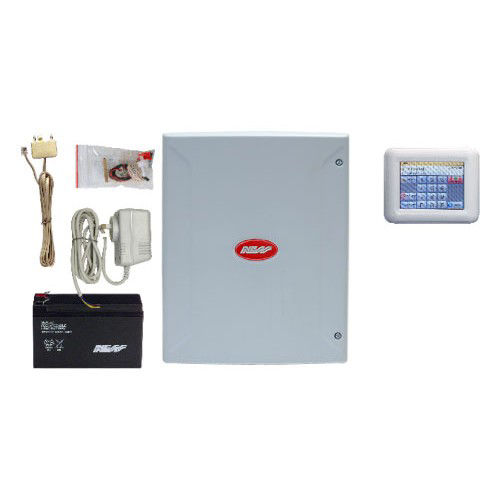

Supplied With

  • Ness Navigator Touch Screen Keypad
  • D8X panel
  • 17VAC Plug Pack
  • Battery
  • Telephone Lead
  • Housing
  • Manuals

MONITORING ADVISORY
The traditional PSTN Landline telephone network has been decommissioned across Australia as part of the nationwide NBN rollout.
As a result, this product is no longer capable of reporting alarms via telephone. However, it can still be used as a local alarm system.

For back to base monitoring we recommend the Ness XCEL 4G or DPlus range of alarm panels using Armor-IP reporting format.


Made In Australia Control Panel Made In Australia by NESS

Mobile Apps

Mezzo app
(iOS, Ness free app)
Requires optional 106-014
Ness Bridge Ethernet Interface

Mezzo app
(Android, Ness free app)
Requires optional 106-014
Ness Bridge Ethernet Interface



iComms app
(iOS only, third party paid app)
Requires optional 101-244
IP232 Ethernet Interface

aComms app
(Android only, third party paid app)
Requires optional 101-244
IP232 Ethernet Interface

Note: The Ness XCEL SMS app is no longer available or supported.

3.5" colour LCD Touch Screen
The easiest to read alarm keypad ever!

Voice alarms and voice prompts using a preset voice message library
Allows for professional Back to Base monitoring via Contact ID or 'self-monitoring' via intuitive voice alarm messages.

Superb contemporary design
The clean, crisp design adds elegance to any decor in the home or office.

Plain English event displays by name
Add your own text description text descriptions for your alarm zones. Choose from the built-in library or add your own.

Dealer details page
Never lose a business card again! Your installer can leave his contact details in your Navigator.

Advanced English Programming
Navigator makes everyday programming such as changing user codes or timers a breeze.

Touch Screen Age
Navigator is a true Price-Performance breakthrough offering touch screen technology for not much more than a traditional keypad.

Designed and Manufactured in Australia
Navigator is proudly a genuine Australian product - conceived, born and raised at our Seven Hills NSW manufacturing facility.

Navigator Touch Screen
DIMENSIONS (W - H - D)108 x 86 x 15 mm
DISPLAY TYPE3.5" Colour lCD
DISPLAY RESOLUTION320 x 240
TOUCH SCREENTouch sensitive surface
COMPATIBILITYD8X
OPERATION VOLTAGE12VDC supplied by the control panel
DATA2 wire proprietary Ness data bus
Navigator Control Panel D8X
BOX DIMENSIONS (W - H - D)235 x 300 x 90 mm
POWER INPUT17VAC or 20VDC
AUX POWER OUTPUT13.8v DC @ 800mA
QUIESCENT CURRENT DRAW80mA with 1 keypad
RECHARGEABLE BATTERY12 volt 7.0 Amp/hour Sealed lead Acid
BATTERY CHARGING CURRENT350mA maximum, current limited
DYNAMIC BATTERY TESTBackup battery is tested under load, hourly and on arming
FUSES2 Amp auto resetting  / Siren output & Reset output.
500mA auto resetting / 12 volt auxiliary outputs.
200 mA auto resetting / Strobe output
ZONE OUTPUTS8 zone inputs. 2 x 24hr tamper inputs
END OF LINE RESISTORChoice of 12 programmable values including N/C.
Default 2200 Ohms (2.2k)
MAXIMUM KEYPADS3 x Navigator Touch Keypads max.
INTEGRATED RADIO OPTIONSMulti-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 8 radio zones
SERIAL HEADERSerial data port for direct connect programming using NessCommsTM software. Also 2 way serial data
INTEGRATED ACCESS CONTROLMulti-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers
SIREN OUTPUTOn board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers
STROBE OUTPUT12v DC timed output. Maximum 2 x 1 Watt strobe lights
RESET OUTPUT12v DC timed output. Max. 3 x 12v piezo screamers
EQUIPMENT POWER OUTPUT13.8v DC output for powering detectors and other equipment. Maximum 500mA
AUX READERMulti-pin connector provides outputs Aux1, Aux2, Aux3, Aux4, 12v DC

The New Face of your Alarm System

Ness D8XD Navigator Panel provides both the user and the installer with unrivalled ease of use. Its self-explanatory operation guides provide you with plain English displays and intuitive touch screen operation.

Ness Navigator makes it easy to view your entire system. Personalise the name of your rooms, get help and prompts for arming/disarming, home automation features, emergency alarms and much more.



Supplied With

  • Ness Navigator Touch Screen Keypad
  • D8X panel
  • 17VAC Plug Pack
  • Battery
  • Telephone Lead
  • Housing
  • Manuals

MONITORING ADVISORY
The traditional PSTN Landline telephone network has been decommissioned across Australia as part of the nationwide NBN rollout.
As a result, this product is no longer capable of reporting alarms via telephone. However, it can still be used as a local alarm system.

For back to base monitoring we recommend the Ness XCEL 4G or DPlus range of alarm panels using Armor-IP reporting format.


Made In Australia Control Panel Made In Australia by NESS
