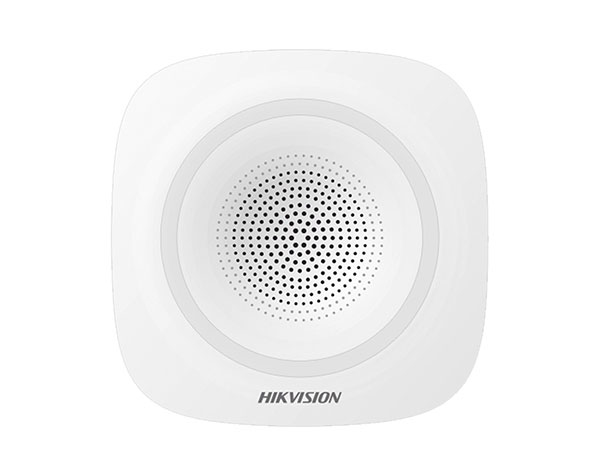

DS-PSG-WI-433 WITH BATTERIES

Software Features

• Tamper-ProofFront and rear

Hardware Features

• IndicatorIndicator Blue (on front panel), Green/Red (on PCB

RF Transmission

• RF Frequency433MHz
• RF Modulation2GFSK
• RF Speed10 kbps
• RF Range800 m (open area)

Electrical Characteristics

• Power Supply4 CR123A Batteries (default) or 12 VDC
• Battery Life Span5 years in stand-by status
• Power ConsumptionStatic consumption: ≤ 20 uA

General

• Operation Temperature-10 °C to +60 °C (14 °F to +140 °F)
• Operation Humidity10% to 90% (no condensing)
• Shell MaterialPC + ABS
• Dimension(WxHxD)90.0 × 90.0 × 30.0 mm (35.4" ×35.4" × 11.8"）
• IP RateIP54
• Application ScenarioIndoor
• ColorWhite
• Installation MethodWall mounting
