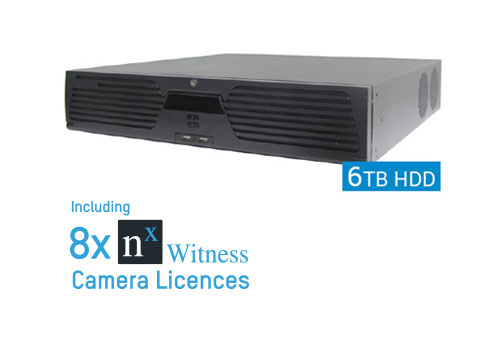

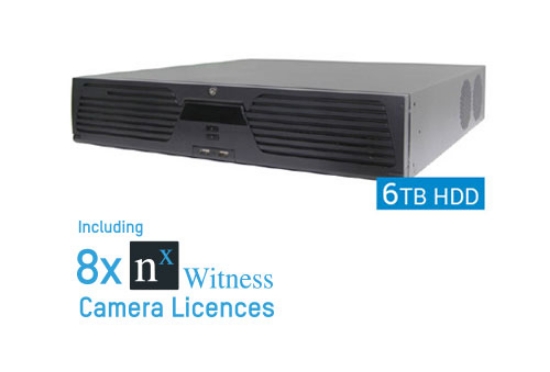

VMS Video Server is based on the new T8 Server development platform. It is designed for professional IP video surveillance. It is featured with well performance CPU processing, encoding and decoding, and storage capability.
768MB Bandwidth capability supports up to 32 IP cameras. Example based on 32+ x 4MP cameras using H.264 encoding. Fewer or more cameras can be used depending on your own framerate and resolution requirements. Try different scenarios using the handy NX Witness Bandwidth Calculator http://networkoptix.com/calculator/
Supports up to 8 x 1TB/2TB/3TB/4TB/5TB/6TB or 8TB HDD (Supplied with 1 x 6TB HDD)
Linux O/S and 8 NX Camera Licences pre-installed and can be expanded as required (Refer Ness Project team for specific requirements)
Note1: This device is not an NVR. A USB Keyboad and monitor (not supplied) may be required for setup. The monitor is usually only required for adjustment of server admin settings.
Note2: VMS Servers are designed to record and 'serve' video streams to multiple remote clients. NX Client software should be installed on separate PCs.
MAKES DESIGNING AN IP VIDEO SYSTEM EASY
- 1 device for every 32 IP cameras.
- Cost-effective for any size system.
- Reduce power and network cabling.
- Configurable storage (Supports up to 8 x 8TB HDD) - Supplied with 1 x 6TB HDD.
- 2 x USB 2.0 Interfaces
- VGA Output
- HDMI Output
POWERFULLY SIMPLE EMBEDDED DEVICE
- Intel® Xeon® Processor E3-1225 v5, 3.30 Ghz (8M Cache, 3.30 GHz) with low power consumption and high performance
- 8GB RAM
- Automatic Failover to additional servers on a system.
- 8 x Nx Witness Licenses Included
- 8 x HDD capacity
- 1.5U Chassis / 19" Rack Mount
Supplied With
- 1 x Ness 104-VMS3 Server
- 8 x 104-634 Nx Camera Licences
- 1 x 895-189 6TB HDD
