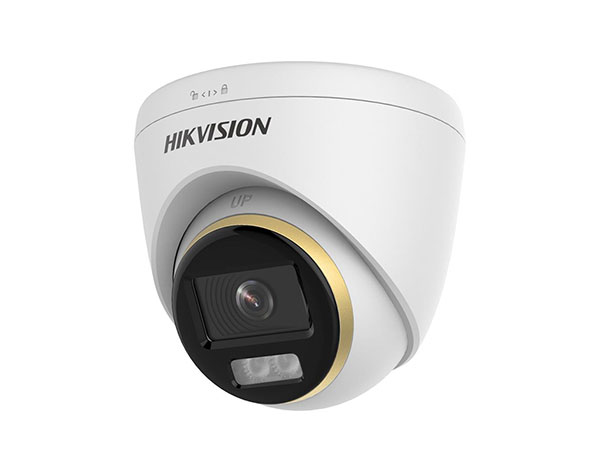

Hik DS-2CE72KF3T-L 3K TVI Hybrid Turret 2.8mm

Camera

• Image Sensor3K CMOS
• Signal SystemPAL/NTSC
• Max. Resolution2960 (H) × 1665 (V)
• Slow ShutterMax. 16 times
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens

• Lens Type2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 139°

  3.6 mm, horizontal FOV: 90°, vertical FOV: 49°, diagonal FOV: 105°

• Lens MountM12

Illuminator

• Supplement Light TypeSmart,IR,White Light
• Supplement Light RangeIR: Up to 40 m,White Light: Up to 40 m


• Day/Night ModeAuto/Color
• Frame Rate3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
• Privacy Mask4 programmable privacy masks/8programmable privacy masks
• Wide Dynamic Range (WDR)≥130 dB
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• AGCYes
• White BalanceAuto/Outdoor/Global/Manual
• Image EnhancementWDR;BLC;HLC;Global;HLS
• Noise Reduction3D DNR/2D DNR
• Image SettingsAnti-Banding;Smart Light;Brightness;Contrast;Mirror

Interface

• Video Output1 HD analog output

Event

• Motion Detection4 programmable motion areas

General

• Power

  12 VDC ± 25%, 0.65 A, max. 7.8 W,

  *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.

• LanguageEnglish
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
• MaterialMain body: Metal, Enclosure: Plastic
• CommunicationHIKVISION-C
• DimensionØ109.98 mm × 98.27 mm (Ø4.33" × 3.87")
• WeightApprox. 325 g (0.72 lb.)

Approval

• ProtectionIP67
