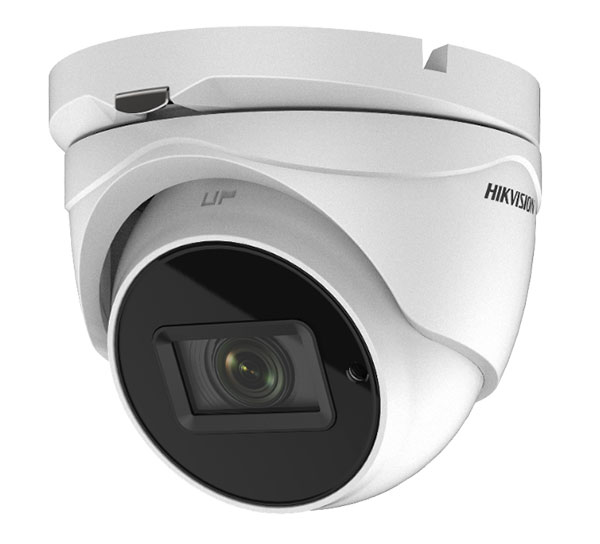

DS-2CE79H8T-AIT3ZF 5MP TVI Turret 2.7-13.5mm

Camera

• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) × 1944 (V)
• Min. Illumination0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/12.5s to 1/50, 000 s

  NTSC: 1/15 s to 1/50, 000 s

• Day & NightICR
• Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
• Signal SystemPAL/NTSC

Lens

• Lens Type2.7 mm to 13.5 mm motorized varifocal lens
• Focal Length & FOV92.3° to 29.3°
• Lens MountΦ14


• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart IR
• Frame Rate

  TVI: 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

  AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps

  CVI: 4MP@25fps, 4MP@30fps

  CVBS: PAL, NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)≥130 dB
• Image EnhancementBLC, HLC
• White BalanceATW/MANUAL
• AGCSupport

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• MaterialMetal
• Dimension123.86 mm × 134.3 mm × 110.24 mm (4.88" × 5.29" × 4.34")
• Approx. 630 g (1.39 lb.)
• Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ± 20%, 24 VAC ± 20%
• Consumption

  Max. 10.5 W

• IR RangeUp to 60 m

Approval

• ProtectionIP67
