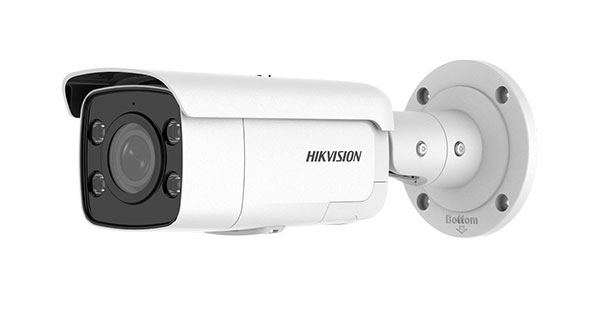

Hik DS-2CD2T87G2-LSU/SL 8MP ClrVu LiveGrd Blt 2.8

Camera

• Image Sensor1/1.2" Progressive Scan CMOS
• Max. Resolution3840 × 2160
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time1/3 s to 1/100,000 s
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Day & Night24/7 color imaging

Lens

• Focal Length & FOV

  2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°

  4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°

  6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°

• Lens TypeFixed focal lens, 2.8, 4, 6 mm optional
• Iris TypeFixed
• ApertureF1.0
• Lens MountM mount
• Depth Of Field

  2.8 mm: 4.5 m to ∞

  4 mm: 7 m to ∞

  6 mm: 13 m to ∞

DORI

• DORI

  2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

  4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

  6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m

Illuminator

• Supplement Light TypeWhite Light
• Supplement Light Range60 m
• Smart Supplement LightYes

Video

• Main Stream

  50 Hz:

  25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  24 fps (3840 × 2160)

  30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)Yes
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)130 dB
• SNR≥ 52 dB
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Mask4 regions of privacy mask

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB
• Reset KeyYes
• Built-In MicrophoneYes
• Built-In Speaker2 W, 10 cm: 97 dB
• Audio

  1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium

  1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 24 VDC, 1 A)

Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), scene change detection
• LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email

Deep Learning Function

• Face CaptureYes

General

• Power

  12 VDC ± 25%, 0.84 A, max. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.21 A

• MaterialFront cover: metal, body: metal, bracket: metal
• Dimension289.9 mm × 93.5 mm × 91.2 mm (11.4" × 3.7" × 3.6")
• Package Dimension386 × 156 × 155 mm (15.2" × 6.1" × 6.1")
• WeightApprox. 1255 g (2.6 lb.)
• With Package WeightApprox. 1769 g (3.7 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter

Approval

• EMC

  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC (ICES-003: Issue 7)

  KC (KN32: 2015, KN35: 2015)

• Safety

  UL (UL 62368-1);

  CB (IEC 62368-1:2014+A11)

  CE-LVD (EN 62368-1:2014/A11:2017)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67 (IEC 60529-2013)
