Manufacturer: Hikvision

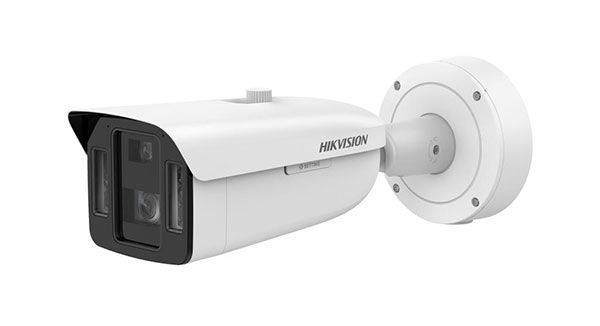

Hikvision iDS-2CD8A46G0-XZHSY 4MP Dual-Sensor ColorVu Bullet

HIKVISION IDS-2CD8A46G0-XZHSY 4MP DUAL-SENSOR 8-32mm & 4mm
SKU: 114-496-M8

4MP DeepinView multi-sensor bullet camera

  • High quality imaging with 4MP resolution in Sensor1 and 4MP resolution in Sensor2
  • Adopt dual-channel design so you can get details in Sensor1 and panoramic view in Sensor2
  • Sensor1: 8-32mm Darkfighter
  • Sensor2: 4mm ColorVu
  • Excellent low-light performance via DarkFighter and ColorVu technology
  • Clear imaging against strong back light due to 140 dB WDR technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • 5 streams to meet a wide variety of applications
  • Water and dust resistant (IP67) and vandal proof (IK10)

Camera

  • Image Sensor

    Channel 1: 1/1.8" Progressive Scan CMOS,

    Channel 2: 1/1.8 Progressive Scan CMOS"

  • Max. ResolutionChannel 1: 2688 × 1520, channel 2: 2560 × 1440
  • Min. Illumination

    Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR,

    Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR

  • Shutter Time1 s to 1/100000 s
  • Day & Night

    IR cut filter,

    Blue glass module (less ghost phenomenon)

  • Angle AdjustmentPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

  • Focal Length & FOV

    Channel 1: 8 to 32 mm : horizontal FOV 42.5° to 15.2°, vertical FOV: 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°

    Channel 2: 4 mm: horizontal FOV: 89°, vertical FOV: 45°, diagonal FOV: 107°

  • FocusChannel 1: Auto, semi-auto, manual
  • Iris Type

    Channel 1: P-iris,

    Channel 2: Fixed

  • Aperture

    Channel 1: Constant F1.6 throughout the zoom range,

    Channel 2: F1.0

DORI

  • DORI

    Channel 1:

    Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m

    Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

    Channel 2:

    D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

Illuminator

  • Supplement Light TypeHybrid (IR and White Light)
  • Supplement Light Range

    Channel 1: up to 100 m,

    Channel 2: up to 30 m

  • Smart Supplement LightYes
  • IR Wavelength850 nm

Video

  • Main Stream

    Channel 1:

    50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

    60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

    Channel 2:

    50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    Channel 1:

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

    Channel 2:

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Third Stream

    Channel 1:

    50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    Channel 2:

    50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  • Fourth Stream

    Channel 1:

    50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    Channel 2:

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Fifth Stream

    Channel 1:

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

    Channel 2:

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264,

    Fourth stream: H.265/H.264/MJPEG,

    Fifth stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)4 fixed region(s) for each stream
  • Target CroppingYes

Audio

  • Audio TypeMono sound
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes

Network

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200,Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10, IE11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+


  • Image Parameters SwitchYes
  • Image SettingsSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
  • Day/Night Switch

    Channel 1: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger,

    Channel 2: Day, Night, Auto, Schedule, Alarm Trigger

  • Wide Dynamic Range (WDR)140 dB
  • Image Enhancement

    Channel 1: BLC, HLC, 3D DNR, Defog, EIS,

    Channel 2: BLC, HLC, 3D DNR, Defog

  • Privacy Mask8 programmable polygon privacy masks
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface

  • Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
  • Ethernet Interface



    1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

  • On-Board Storage



    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

  • Alarm2 input(s), 2 output(s) (max. 24 VDC, 1 A)
  • Audio

    1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

    1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset KeyYes
  • Power Output12 VDC, max. 50 mA

Event

  • Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,video quality diagnosis, vibration detection
  • Smart Event

    Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),

    Scene change detection,audio exception detection,defocus detection

  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing

Deep Learning Function

  • Multi-Target-Type Detection

    Channel 1,

    Detects up to 60 targets simultaneously,

    Supports simultaneous detection and capture of human body, face and vehicle,

    Gets 7 face features,

    Gets 13 human body features,

    Gets 2 vehicle features

  • Face Capture

    Channel 1,

    Detects up to 120 faces simultaneously,

    Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,

    Uploads face with background and closed-up face pictures

  • Face Comparison

    Channel 1,

    Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total. ,

    Recognizes face identity via face modeling, grading and comparing to those in face library,

    Supports face library encryption

  • Perimeter Protection

    Channel 1,

    Line crossing, intrusion, region entrance, region exiting,

    Support alarm triggering by specified target types (human and vehicle),

    Channel 2,

    Line crossing, intrusion, region entrance, region exiting,

    Support alarm triggering by specified target types (human and vehicle)

  • Road Traffic And Vehicle Detection

    Channel 1,

    Blocklist and allowlist: up to 10,000 records

    Support license plate recognition of motorcycles (only in checkpoint scenario)

    Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

    License plate recognition rate ≥98%

General

  • Power

    Three-core terminal block,

    12 VDC ± 20%, 1.90 A, max. 22.7 W,

    24 VAC ± 20%, 1.39 A, max. 22.3 W,

    PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.59 A to 0.44 A, max. 24.7 W

  • MaterialAluminum alloy body
  • Dimension



    Ø140 mm × 410.1 mm (Ø5.5 × 16.1\")"

  • Package Dimension462 mm × 197 mm × 195 mm (18.2" × 7.76" × 7.68")
  • Weight



    Approx. 2.2 kg (4.85 lb.)

  • With Package Weight



    Approx. 3.38 kg (7.45 lb.)

  • Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions

    With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing),

    Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

  • Language



    33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General FunctionHeartbeat,one-key reset,mirror,password protection, privacy mask, watermark, IP address filter, flash log, conreol time out, anti-banding
  • HeaterYes
  • DemistYes

Approval

  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    LOA: IEC/EN 60950-1

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Anti-Corrosion Protection-Y model: NEMA 4X (NEMA 250-2018)
  • Automotive And RailwayEN50121-4
  • OtherPVC FREE
