Sorry - this product is no longer available

Manufacturer: Hikvision

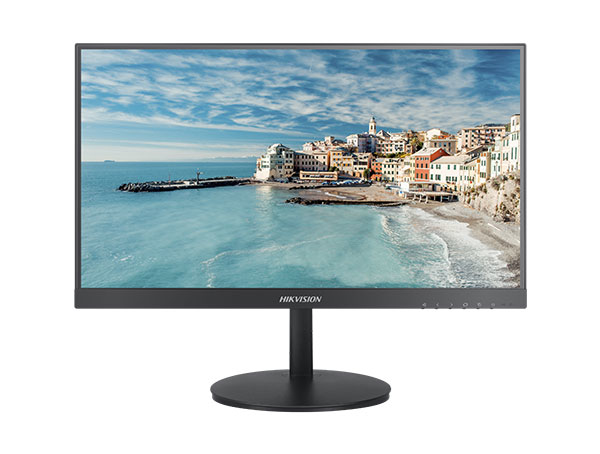

Hikvision DS-D5022FN-C 22" Monitor AU

HIKVISION DS-D5022FN-C 22" MONITOR AU
SKU: 114-285B

Hikvision DS-D5022FN-C 21.5" FHD Borderless Monitor

  • Ultra-thin device body with ultra-thin border on 3 sides.
  • 2 channels of 8 bit/10 bit LVDS HD (1920 × 1080) display.
  • 178° ultra-wide view screen.
  • 3D noise reduction.
  • Low blue light design for eye care.
  • Dual interface, HDMI and VGA.
  • Support VESA wall mount.

Display

  • Screen Size21.5 inch
  • Active Display Area478.656 (H) mm × 260.28 (V) mm
  • Resolution1920 × 1080
  • BacklightE-LED
  • Pixel Pitch0.0831 (H) mm × 0.241 (V) mm
  • Brightness250 cd/m²
  • Viewing Angle178°(H)/178°(V)
  • Color Depth8 bit
  • Contrast Ratio3000:1
  • Response Time6.5 ms
  • Refresh Rate60 Hz
  • Haze25%
  • Reliability7 × 24 h
  • Color Gamut72% NTSC

Interface

  • Video & Audio InputHDMI 1.4 × 1, VGA × 1

Power

  • Power Supply100 to 240 VAC, 50/60 Hz
  • Power Consumption≤ 22 W
  • Standby Consumption≤ 0.5 W

Working Environment

  • Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity20% to 90% RH (without condensation)
  • Storage Temperature–20 ℃ to 60 ℃ (–4 ℉ to 140 ℉)
  • Storage Humidity10% to 90% RH (without condensation)

General

  • Casing MaterialPlastic
  • VESA75 mm × 75mm,4-M6 × 6 screw holes
  • Bezel WidthTop: 1.88 mm, bottom: 19 mm, left: 1.88 mm, right: 1.88 mm
  • Product Dimensions (W × H × D)

    With base: 492.356 (W) mm × 390.11 (H) mm × 200.20 (D) mm (19.38'' ×15.36'' × 7.88'')

    Without base: 492.356 (W) mm × 289.680 (H) mm × 43.88 (D) mm (19.38'' × 11.40'' × 1.73'')

  • Package Dimensions (W × H × D)647 (W) mm × 111 (H) mm × 406 (D) mm (25.49 '' × 4.37 '' × 15.99 '')
  • Net Weight2.6 ± 0.5 kg (5.7 ± 1.1 lb.)
  • Gross Weight

    4.0 ± 0.5 kg (8.8 ± 1.1 lb.)



  • Packing ListMonitor ×1, AC power cable × 1, base bracket × 1, user manual × 1, quick start guide × 1, HDMI cable × 1
  • Remarks

    *The base is included by default.

    *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.

Brochure

Hikvision DS-D5022FN-C 21.5" FHD Borderless Monitor

  • Ultra-thin device body with ultra-thin border on 3 sides.
  • 2 channels of 8 bit/10 bit LVDS HD (1920 × 1080) display.
  • 178° ultra-wide view screen.
  • 3D noise reduction.
  • Low blue light design for eye care.
  • Dual interface, HDMI and VGA.
  • Support VESA wall mount.
