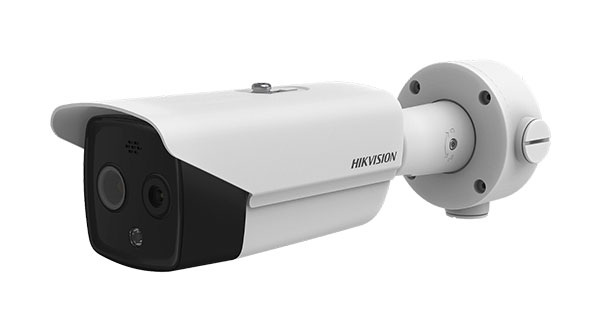

O- HIK DS-2TD2617-6/PA HeatPro Bullet Camera 6mm

Thermal Module

• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution160 × 120
• Pixel Interval17 μm
• Response Waveband8 μm to 14 μm
• NETDLess than 40 mK (@ 25 °C,F#=1.1)
• Focal Length6.2 mm
• IFOV2.74 mrad
• Field Of View25.0° × 18.7° (H × V)
• Min. Focusing Distance0.6 m
• ApertureF1.1
• Digital Zoom×2, ×4, ×8

Optical Module

• Image Sensor1/2.7" Progressive Scan CMOS
• Resolution2688 × 1520, 4 MP
• Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
• Shutter Speed1s to 1/100,000s
• Focal Length8 mm
• Field Of View39.42° × 22.14°(H × V)
• Aperture (Range)F1.7
• WDR120 dB

Image Effect

• Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
• Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
• Target ColorationYes. Supported in white hot and black hot mode.

Illuminator

• IR DistanceUp to 40 m
• IR Intensity And AngleAutomatically adjusted

Audible And Visual Alarm

• White Light RangeUp to 40 m
• Visual AlarmYes. White light used as the visual alarm, flashing frequency adjustable
• Audio AlarmYes. 6 audio alarms are supported to cover all kinds of alarm.

Smart Function

• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
• Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
• Temperature Accuracy± 8 °C (±14.4 °F)
• Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video And Audio

• Main Stream

  Thermal:

  25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:

  60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub Stream

  Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:

  50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:

  60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)

• Video Compression

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

• Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network

• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• APIISAPI, HIKVISION SDK, and third-party management platform, ONVIF (Profile S, Profile G, Profile T)
• Simultaneous Live ViewUp to 20 channels
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Live view (plug-in allowed) : Internet Explorer 11

  Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

  Local service : Chrome 57.0+, Firefox 52.0 +

Interface

• Alarm Input2-ch inputs (0-5 VDC)
• Alarm Output2-ch relay outputs, alarm response actions configurable
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio OutputLinear Level; Impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface

General

• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.65A
• Power Consumption

  PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W

  12 VDC ± 20%: 0.65 A, max. 7.5 W

• Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
• Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
• Approx. 1.76 kg (3.88 lb)

Detection Range Table/Wide Range Coverage

• Detection Range For Humans (1.8×0.5m)182 m
• Detection Range For Vehicles (4.0×1.4m)559 m
• Recognition Range For Humans (1.8×0.5m)46 m
• Recognition Range For Vehicles (4.0×1.4m)140 m
• Identification Range For Humans (1.8×0.5m)23 m
• Identification Range For Vehicles (4.0×1.4m)70 m

Detection Range Table/Smart Function Range

• VCA Range For Humans30 m
• VCA Range For Vehicles90 m
• Temperature Measurement Range For Object (2m×2m)132 m
• Temperature Measurement Range For Object (1m×1m)66 m
• Fire Detection Range For Object (2m×2m)360 m
• Fire Detection Range For Object (1m×1m)180 m
