Manufacturer: Hikvision

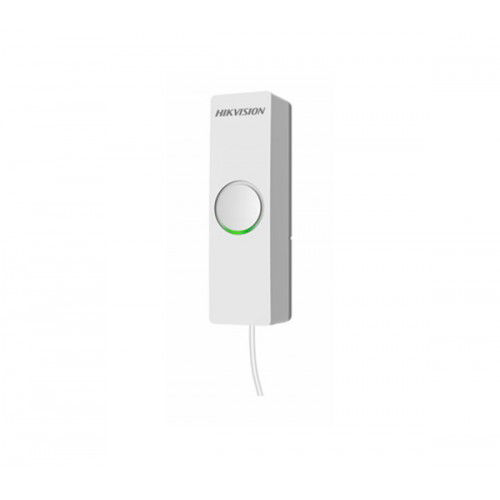

HIKVISION DS-PM-WI1 Wireless Input Expander GEN1

Wireless Input Expander

SKU: 114-202

Overview
Specifications
Downloads

Hikvision DS-PM-WI1 GEN1 - Wireless Input Expander to learn into Wireless Security Control Panel. (Refer Ness Part No 114-191).

The DS-PM-WI1 wireless input expander, which supports wireless FM data transmission, is a detection device.

Any hard-wired detection device with dry contacts can be connected with this device and once activated transmits the alarm signal via secure wireless mode to the security control panel. Recommended for inside use.

Specification
RF frequency:	433 MHz/868 MHz
RF distance:	800 m (open area)
RF speed:	10 kbps
Battery lifetime:	2 years
Alarm input type:	1 NC input
Tamper:	Front and rear supported
Power supply:	CR123 A/3 V
Status LEDs:	1 red & green LED
Button:	1 onboard tamper button
Switch:	1 switch for turning on/off LED
Shell material:	PC + ABS
Application scene:	Indoor
Operating temperature:	- 10 °C to 55 °C (14 °F to 131 °F)
Operating humidity:	10% to 90% (non-condensing)
Dimension (H × W × D):	84 mm × 25 mm × 21 mm (2.52" × 0.75" × 0.63")
Weight:	38.5 g (0.085 lb)

Hikvision DS-PM-WI1 GEN1 - Wireless Input Expander to learn into Wireless Security Control Panel. (Refer Ness Part No 114-191).

The DS-PM-WI1 wireless input expander, which supports wireless FM data transmission, is a detection device.
