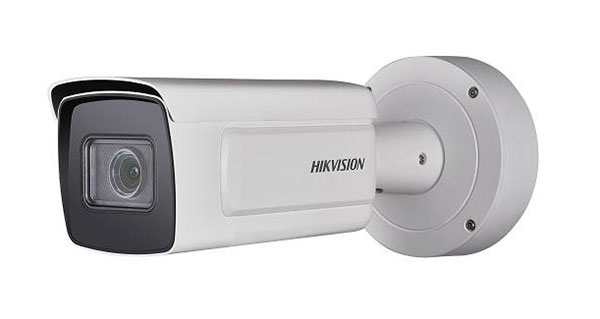

HIK DS-2CD7A26G0/P-IZS 2MP ANPR Bullet 8-32mm

Camera

• Image Sensor1/1.8ʺ Progressive Scan CMOS
• Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed1 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range140 dB
• Day & NightIR cut filter
• Angle AdjustmentBracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• FocusAuto, semi auto, manual
• Lens Type2.8 to 12 mm and 8 to 32 mm optional
• FOV

  2.8 to 12 mm: horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3°

  8 to 32 mm: horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°



• Aperture

  2.8 to 12 mm: F1.2

  8 to 32 mm: F1.6



• Lens MountIntegrated

Illuminator

• IR Range2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m
• IR Wavelength850 nm

Video

• Max. Resolution1920 × 1080
• Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
• Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
• Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream support
• H.265+Main stream support
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking

Audio

• Environment Noise FilteringNo
• Audio Sampling RateNo
• Audio CompressionNo
• Audio Bit RateNo

Network

• Simultaneous Live ViewUp to 20 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
• Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ClientiVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
• Web Browser

  Plug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+

  Plug-in free live view: Chrome45+, Mozilla Firefox52+


• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video
• Target CroppingYes
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, distortion correction
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

• AudioNo
• Alarm2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
• Video Output1Vp-p composite output (75 Ω/CVBS), only for adjustment
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Communication Interface

  1 RJ45 10M/100M/1000M Ethernet port,

  1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

• Heater-H: yes

Event

• CountingNo
• Exception DetectionScene change detection, defocus detection

Deep Learning Function

• Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
• Accuracy

  Capture rate > 98%

  Vehicle moving direction recognition accuracy > 96%

  Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)



• No License Plate DetectionYes
• Motorcycle LPRYes (only applicable to checkpoint)
• Allowlist And BlocklistMax. 10,000 records

General

• Firmware Version5.5.60
• General FunctionOne-key reset, anti-flicker, five streams and custom stream, heartbeat, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions

  -30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F)

  Humidity 95% or less (non-condensing)

• Power Supply12 VDC ± 20%, two-core terminal block；PoE (802.3at, class 4）
• Power Consumption And Current

  -IZS: 12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A

  -IZHS: 12 VDC, 1.4 A, max. 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A

• Camera Dimension

  Camera: Φ140 × 351 mm (Φ5.5″ × 13.8″)

  With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)



• Camera Weight

  Camera: approx. 2.5 kg (5.51 lb.)

  With package: approx. 2.75 kg (6.06 lb.)

Approval

• ProtectionIP67, IK10
