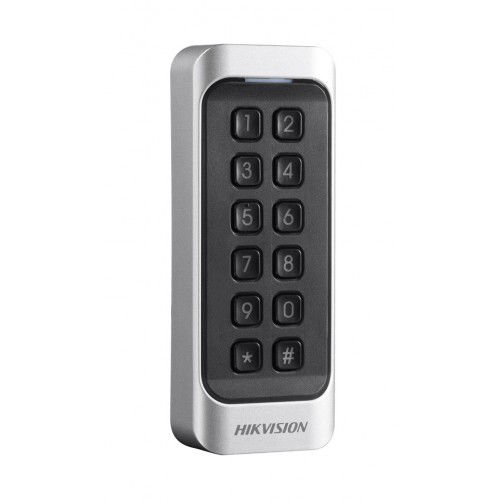

Hikvision DS-K1107MK Proximity Card Reader with Keypad

RS485 / Wiegand Card Reader with Keypad

SKU: 114-121

Overview
Specifications

Hikvision DS-K1107MKN Proximity Card Reader with Keypad

The Hikvision DS-K1107 Series of card readers supports RS-485 and Wiegand (W26/W34) protocols (Site selectable).
The built-in 13.56 MHz Mifare card reading module meets the ISO 14443-A standard and reads Mifare ID cards.

LED Indicator Displays Reader Status
Tamper-Resistant Alarm
Supports Mifare Cards
RS-485 and Wiegand (W26/W34) Protocols
Used for Card and Code security, or can be used in 'Code Authentication Mode' when used with Hikvision Access Controllers.

System Parameters

Card Reading Distance: Mifare Card:=50 mm
ID Settings: Setting by the DIP Switch on the Main Board
Processor: 32-bit

General

Audio Alert: Beeper
Power Supply: 12VDC
Communication Interface: RS-485 / Wiegand (DIP Switch Selectable)
Power Consumption: =2W
LED Indicator: Power Indicator; Status LED Indicator
Protection Level: IP64

System Parameters
Card Reading Distance:	Mifare Card:≤50 mm (≤1.97")
ID Settings:	Setting by the DIP Switch on the Main Board
Processor:	32-bit
General
Key Board:	Keypad with 12 Keys (0~9, *, #)
Audio Alert:	Beeper
Power Supply:	12VDC
Communication Interface:	RS-485 / Wiegand (DIP Switch)
Power Consumption:	≤2W
LED Indicator:	Power Indicator; Status LED Indicator
Protection Level:	IP 64
Installation:	Wall mounting with screws. The Gang Box is not supported.
Temper-Proof:	Support
Working Humidity:	10% to 90% (Non-Condensing)
Working Temperature :	-20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H):	115mm × 44mm × 22mm (4.53''×1.73''×0.87'')
