Manufacturer: Ness Corporation

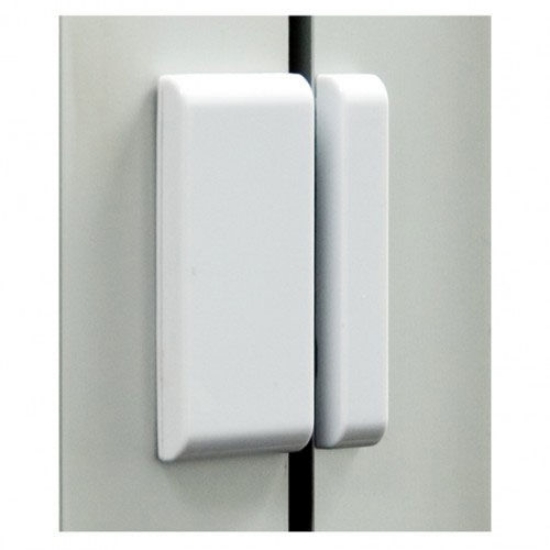

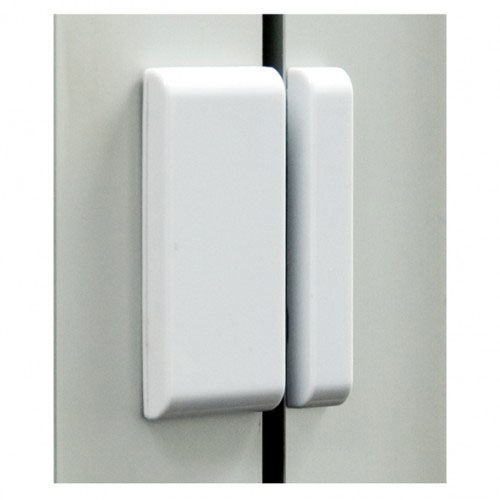

NESS RR3 MICRO RADIO REED 304MHz

Ultra low profile wireless reed switch
SKU: 106-091

A Wireless World

The Ness RR3 Micro Radio Reed Switch (One Way Radio) is a battery-operated radio transmitter with the internal reed switch.

The ultra low profile body of the reed switch and supplied magnet allows for unobtrusive installation on door and window frames in cases where wired reed switches cannot be used.

Compatible with Ness panels via the Ness Radio Interface (One way radio)

Supplied With

  • Reed Switch
  • Battery
  • Manual
  • On-board reed switch
  • Fully supervised, encrypted signals
  • Compatible with all Ness radio receivers
  • Lithium battery operation
  • Ultra-low standby current draw
  • Unique Earthing spring for extra range
  • Self adhesive pad mount
OPERATION VOLTAGE3V Lithium
STANDBY CURRENT DRAWTypically 4μA
SIGNALS TRANSMITTED1. Alarm/Restore
2. Low Battery
3. Supervision signal hourly
4. Learn message
RADIO SECURITYEncryption. Supervised operation
FREQUENCY303.85MHz/868MHz
INDICATORLED (concealed, visible through front housing)
DIMENSIONS (H - W - D)60 x 28 x 7 mm
WEIGHT20g

Brochure

A Wireless World

The Ness RR3 Micro Radio Reed Switch (One Way Radio) is a battery-operated radio transmitter with the internal reed switch.

The ultra low profile body of the reed switch and supplied magnet allows for unobtrusive installation on door and window frames in cases where wired reed switches cannot be used.

Compatible with Ness panels via the Ness Radio Interface (One way radio)

Supplied With

  • Reed Switch
  • Battery
  • Manual
