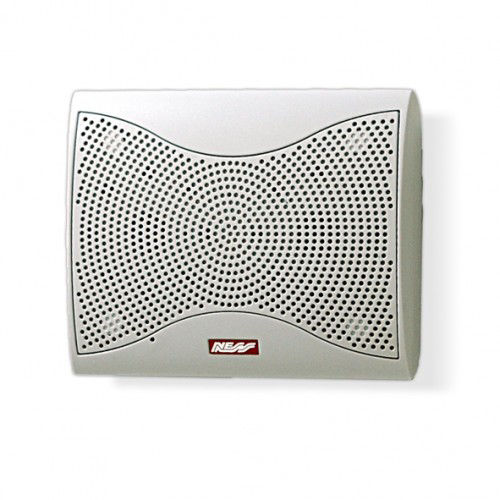

SATELLITE RADIO SIREN 304MHz

Wireless Satellite Siren

SKU: 106-081

Overview
Features
Specifications
Downloads

RSS RADIO SIREN SATELLITE

The Ness RSS Radio Satellite can even drive an optional external siren & strobe for truly wireless sirens - inside and out. The Unit provides full satellite siren capabilities and offers an additional modulated siren output, strobe output and tamper input. One application, for example, might be that an installation does not lend itself to a wired external siren install, so the installer may choose to place the Radio satellite Siren on the internal wall and use the sirens outputs and tamper input to run a standard external siren configuration directly located on the external wall behind the radio siren.

Compatible With

Used in conjunction with the Ness 106-084 Radio Transmitter, this siren can be activated by the application of a 12V trigger to the transmitter from any source.

Wireless SATELLITE Siren with universal applications.
Backup battery
External siren and strobe outputs
Hardwired tamper input

Providing a powerful 116dB siren output, this has unlimited applications in Security, Fire, EVAC and many other applications limited only by your imagination.

EXTERNAL INPUTS	Tamper Input - 2k2 eol Z1 input 2k2 - enables Reset mode
EXTERNAL OUTPUTS	Siren output - 1 x 4 ohm or 2 x 8 ohm horn speakers max. Duration 5 minutes Strobe output - 1 x mini Strobe light max Duration 11 hours or 1 hour if mains power is off
STROBE OUTPUT DURATION	If the RST is wired to send a Strobe message: 11 hours or 1 hour If mains power is off If the RST wired not to send a Strobe message: 5 minutes If the Strobe Output is converted into a Reset Output: 5 minutes
FUSES	2a auto reset electronic fuse for external Siren & Strobe outputs
BACKUP BATTERY	12V 0.8ah Sealed lead acid
DYNAMIC BATTERY TEST	Every hour and on receipt of any radio message
