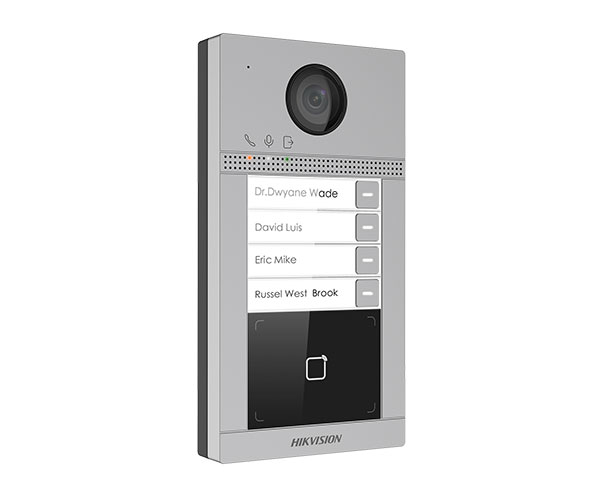

HIK DS-KV8413-WME1 Door Station 4 Button Surface

System Parameters

• Operating SystemEmbedded Linux operation system
• ROM32 MB
• RAM128 MB
• CPUEmbedded processor

Display Parameters

• Screen Size7-inch colorful TFT screen
• Operation MethodCapacitive touch screen
• TypeColorful TFT screen
• Resolution1024 × 600

Video Parameters

• Lens/
• Resolution/
• FOV/
• WDR/
• Video Compression StandardDS-KH6320-WTE1
• Focal Length/

Audio Parameters

• Audio Compression StandardG.711 U
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

Capacity

• Notice Capacity200
• Linked Network Camera Capacity16
• Linked Indoor Extensions Capacity5
• Linked Doorphone Capacity8

Network Parameters

• Communication ProtocolTCP/IP, SIP, RTSP
• Wired Network10/100 Mbps self-adaptive
• Wi-Fi StandardWi-Fi 802.11 b/g/n
• Bluetooth Version/
• 3G/4G Standard/
• Zigbee/

Device Interfaces

• Alarm Input8-ch alarm inputs
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-4851
• USB/
• TF CardMax to 32 G, SD 2.0 or lower version
• Alarm Output2
• Power Interface1

General

• Button0
• InstallationSurface mounting
• Indicator0

• With package: 683 g

  Without package: 355 g

• Protective Level/
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimensions200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Battery/
• Application EnvironmentIndoor
• Power Consumption≤ 6 W

Face Recognition Terminal/General

• Power Supply Method

  IEEE802.3af, standard PoE

  12 VDC/1 A
