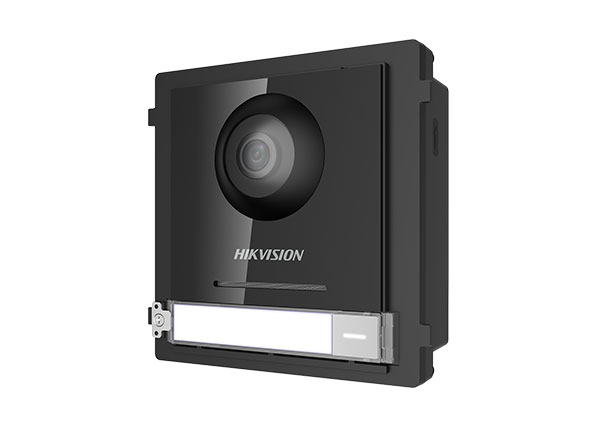

HIK DS-KD8003-IME2 2-Wire Video Door Station Gen2

Display Parameters

• Size/
• Operation MethodPhysical button
• Type/

Video Parameters

• Supplement Light

  IR supplement



• Lens1
• FOVHorizontal 180°, vertical 96°
• PixelMain stream: 1920 × 1080, (720p configurable)͖; sub stream: 720 × 480

Audio Parameters

• Audio QualityNoise suppression and echo cancellation

Capacity

• Sub Door Station Capacity16

Network Parameters

• Communication Protocol

  TCP/IP, RTSP



• Wired NetworkTwo-wire transmission
• Wi-Fi/
• Bluetooth/

Device Interfaces

• Network Interface0
• Exit Button2
• Lock Control2
• Door Contact Input2
• Power Interface1

General

• Button1
• InstallationWall mounting
• Indicator0
• /
• Protective LevelIP65
• Power Supply Method

  24 VDC two-wire power supply (< 16 W) or 12 VDC independent power supply (<

  20 W)



• Working Temperature-40 °C to 60 °C (-40 °F to 140 °F)
• Working Humidity10% to 95%
• Dimensions

  98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93\" × 1.73\")



• Battery/
• Application EnvironmentOutdoor
• Power Consumption

  24 VDC two-wire power supply (≤16 W) or 12 VDC independent power supply 20 W)
