Manufacturer: Hikvision

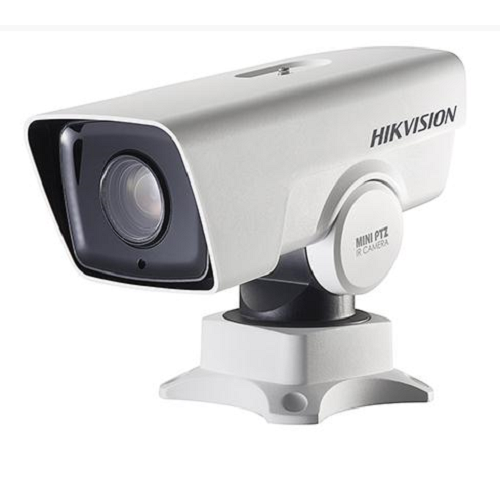

C - HIKVISION DS-2DY3320IW-DE4

DS-2DY3320IW-DE4 3MP Mini Positioner PTZ bullet

SPECIAL ORDER - Check availability before ordering

SKU: 104-839

Hikvision DS-2DY3320DE4 3MP Network IR PTZ Cameras are able to capture high-quality images in low light environment with its black anti-reflective glass.

The black anti-reflective glass increases the luminousness which can reach up to 100m IR distance.

Embedded with 1/2.8’’ progressive scan CMOS chip makes WDR and 2MP/3MP real-time resolution possible. With the 20X optical zoom Day/Night lens, the camera offers more details over expansive areas.

  • 1/2.8" Progressive Scan CMOS
  • 2048 x 1536/1920 x 1080
  • Support H.265 Video Compression
  • 20X Optical Zoom
  • WDR
  • 3D intelligent positioning function
  • Up to 100m IR distance
  • 12VDC &POE+
Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Minimum Illumination: Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.005Lux @ (F1.6, AGC ON), 0 Lux with IR
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
S/N Ratio: >52dB
HLC: Support
Smart defog: Support
WDR: Support
Shutter Time: 50HZ: 1/1 ~ 1/30,000s, 60HZ: 1/1~1/30,000s
Digital Zoom: 16X
Lens
Focal Length: 4.7-94mm, 20X
Angle of View: 58.3°-3.2°(Wide-Tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.6-F3.5
Pan & Tilt
Pan Speed: Pan: 0.1°-60°/s, Tilt: 0.1°-30°/s
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Infrared
IR irradiation distance: 100m
Alarm
Alarm Input: 1
Alarm Output: 1
Network
Max.Image Resolution: 2048×1536
Protocols: IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,
DHCP, PPPoE
General
Power Supply: 12VDC, PoE+
Power Consumption: MAX. 19W
Working Temperature/Humidity: -30 °C – 65 °C (Outdoor), Humidity 90% or less
Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions: 367×122×241(-DE) /255×129×194(-DE4)
Weight (approx.): 3kg

Brochure

Hikvision DS-2DY3320DE4 3MP Network IR PTZ Cameras are able to capture high-quality images in low light environment with its black anti-reflective glass.

The black anti-reflective glass increases the luminousness which can reach up to 100m IR distance.

Embedded with 1/2.8’’ progressive scan CMOS chip makes WDR and 2MP/3MP real-time resolution possible. With the 20X optical zoom Day/Night lens, the camera offers more details over expansive areas.
