Manufacturer: Hikvision

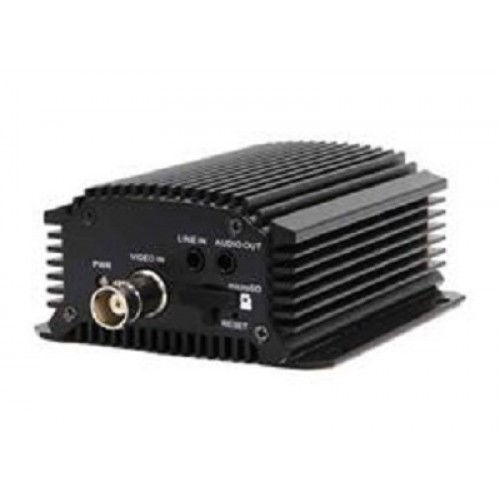

Hikvision DS-6701HWI 4 Channel Encoder

HIKVISION DS-6704HWI ENCODER
SKU: 104-754

4 Channel Encoder

  • WD1/4CIF/2CIF/CIF/QCIF
  •
  • H.264/MPEG4/MPEG2 encoding: 25 fps (P) / 30 fps (N); MJPEG encoding: 15 fps
  •
  • Support multiple network protocols, including IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3, OnVIF, PSIA, SOCKSv4/v5.
  •
  • 1 RJ-45 10 M / 100 Mbps adaptive Ethernet interface (PoE)
  • H.264/MPEG4/MPEG2/MJPEG encoding standards supported
  • Up to WD1 real-time encoding
  • One PoE network interface for DS-6701/6704HWI models
  • Connectable with network HDD in NAS, IPSAN mode
  • Support multiple network protocols, including IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ,
  • FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3, OnVIF, PSIA, SOCKSv4/v5, etc.;
  • Multiple PTZ protocols
Video/Audio input
Video Compression: H.264/MPEG4/MPEG2/MJPEG
Video input: 1-ch,
BNC (1.0 Vp-p, 75 Ω) 4-ch,
BNC (1.0 Vp-p, 75 Ω)
Audio compression: G.711
Audio input: 1-ch, 3.5mm interface
(2.0 Vp-p, 1 kΩ) 4-ch,
Line input interface
(2.0 Vp-p, 1 kΩ)
Two-way audio: 1-ch, 3.5 mm audio (2.0 Vp-p, 1 kΩ)
Video/Audio output
Audio output: 1-ch, 3.5mm interface (Linear, 600 Ω)
Encoding resolution: WD1/4CIF/2CIF/CIF/QCIF
Frame rate: H.264/MPEG4/MPEG2 encoding: 25 fps (P) / 30 fps (N); MJPEG encoding: 15 fps
Video bit rate: 32 Kbps ~ 3072 Kbps, or user defined (Max. 8192 Mbps)
Audio bit rate: 64 Kbps
Dual Stream: Support
Stream Type: Video/ Video & Audio
Network protocols
Protocols Supported: IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnPTM,
SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, hkDDNS, NTP, RTSP, RTP/RTCP,TCP, UDP, IGMP, ICMP,DHCP, ARP, SOCKSv4/v5, PSIA, OnVIF, HIKCGI, netFilter
Data storage
Type: NAS, IPSAN, microSD
Capacity: Up to 4 TB capacity for each disk, and 32GB for microSD storage
External interface
Network interface: 1 RJ-45 10 M / 100 Mbps adaptive Ethernet
interface (PoE)
Serial interface: 1 RS-485
1 RS-485, 1 RS-232
Alarm in: 1
4
Alarm out: 1
2
General
Power supply: 12 VDC, or PoE
Consumption: ≤ 6W
≤ 8W
Working temperature: -10°C~+55°C(14°F~131°F)
Working humidity: 10%~90%
Dimension(W×D×H): 80 × 39 × 90 mm
114 × 48 × 128 mm
Weight(without HDD): ≤ 0.5 Kg
≤ 1 Kg
