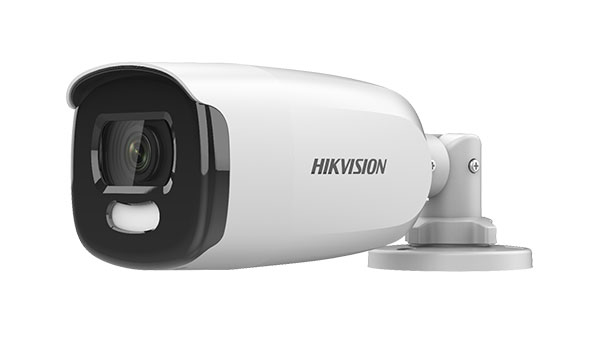

Hik DS-2CE12HFT-F28 5MP ColorVu TVI Bullet 2.8mm

Camera

• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) × 1944 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightColor
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360°
• Signal SystemPAL/NTSC

Lens

• Lens Type2.8 mm fixed lens
• Focal Length & FOV2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
• Lens MountM16


• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart Light
• Frame Rate

  TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps

  CVI: 4MP@30fps, 4MP@25fps

  AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

  CVBS: PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)≥130 dB
• Image EnhancementBLC,HLC
• White BalanceATW/MANUAL
• White LightAUTO/OFF
• AGCSupport

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• MaterialMetal
• Dimension82.6 mm × 77.1 mm × 220.4 mm (3.25" × 3.04" × 8.68")
• Approx. 565 g (1.25 lb.)
• Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption

  Max. 4.9 W

• White Light RangeUp to 40m

Approval

• ProtectionIP67
