HIK DS-3E0505P-E/M 4-Port Gigabit PoE Switch 35W
Sorry - this product is no longer available

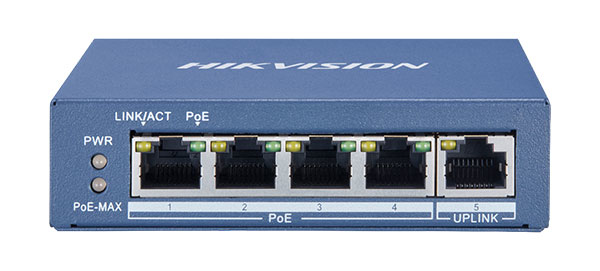

HIK DS-3E0505P-E/M 4-Port Gigabit PoE Switch 35W
HIKVISION DS-3E0505P-E/M
Replaced by 114-280 (with 60W power budget), see
114-280
SKU:
104-083G
Share:
Overview
Specifications
Downloads
4 Port Gigabit Unmanaged POE Switch
4 × Gigabit PoE ports, 1 × Gigabit RJ45 port
IEEE 802.3at/af standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
6 KV surge protection for PoE ports
PoE power management
Gigabit network access
Wire-speed forwarding and non-blocking design
Store-and-forward switching
Solid high-strength metal shell
Reliable fan-free design
35W power budget
Network Parameters
Port Number
4 × Gigabit PoE ports, 1 × Gigabit RJ45 port
Port Type
RJ45 port, full duplex, MDI/MDI-X adaptive
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding Mode
Store-and-forward switching
MAC Address Table
2 K
Internal Cache
1 Mbits
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.44 Mpps
PoE Power Supply
PoE Standard
IEEE 802.3af, IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)
PoE Port
Ports 1 to 4
Max. Port Power
30 W
PoE Power Budget
35 W
General
Dimension (W × H × D)
105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Storage Humidity
5% to 95% (no condensation)
Gross Weight
0.759 kg (1.67 lb)
Net Weight
0.265 kg (0.58 lb)
Power Consumption In Idle
3 W
Shell
Metal material, fan-free design
Operating Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity
5% to 95% (no condensation)
Power Supply
48 VDC, 0.8 A
Max. Power Consumption
38 W
Approval
EMC
FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 18)
Safety
UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2028)
Chemistry
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2017)
