Sorry - this product is no longer available

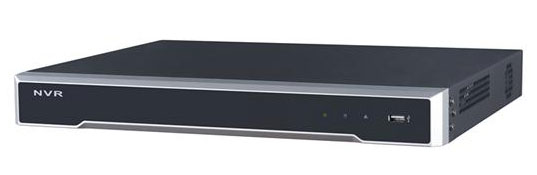

O- DS-7608NI-12/8P V4 8ch NVR inc 6TB HDD

DS-7608NI-12/8P V4 6TB HDD

MINIMAL STOCK REMAINING - SUPERSEDED BY M-SERIES 8ch NVR, see 114-435-4

SKU: 104-062-6

8-ch 1U 8 PoE 4K NVR

  • Up to 8 channel IP cameras can be connected
  • Up to 2-ch@12 MP/16-ch@1080p decoding capacity
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 2 HDDs for continuous video recording
  • Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
  • Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
  • Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
  • Supports dual-stream recording to save time and bandwidth


Video And Audio

  • IP Video Input

    8-ch

    Up to 12 MP resolution

  • Incoming Bandwidth80 Mbps
  • Outgoing Bandwidth256 Mbps
  • HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS OutputN/A (1-ch is optional, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480}
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Video Output ModeHDMI/VGA independent output

Decoding

  • Dual-Stream RecordingSupport
  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Decoding Capability2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
  • Synchronous Playback8-ch
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

Network

  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Remote Connection64
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

  • Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 120 W
  • StandardIEEE 802.3 af/at

Auxiliary Interface

  • SATA4 SATA interfaces
  • CapacityUp to 10 TB capacity for each HDD
  • Alarm In/Out4/1
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 15 W (without HDD and PoE off)
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
  • ≤ 3 kg (6.6 lb.)

Certification

  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
