Manufacturer: Ness Corporation

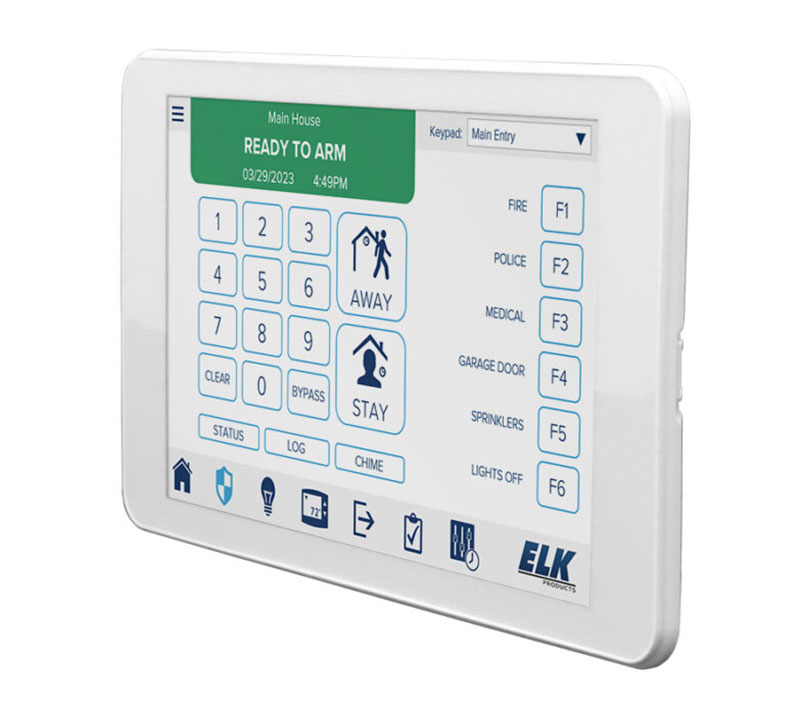

Elk-7TS 7" Colour Touch Screen for M1

Ethernet & WiFi connectivity
SKU: 101-504

ELK-7TS

Discover ELK-7TS 7” touchscreen for M1 Cross Platform Control.
An all-new M1 touchscreen network device introduces users to a fresh and modern interface for M1 systems.

While the GUI operates as a sophisticated keypad ELK-7TS is in fact a LAN device and requires connection to the same network as the M1 controller. The M1 must be network enabled using the optional 101-244 IP232 Serial-to-ethernet bridge.

  • 7” HD Display (1024 x 600 Resolution)
  • Responsive capacitive touchscreen, with 5-point multi-touch
  • G+G Gorilla Glass screen
  • Wi-Fi Connectivity (802.11b/g/n 2.4GHz)
  • Optional ethernet connectivity
  • Dimensions: 192 x 115 x 14mm

Power options:
a) 12VDC 1A via the cable loom provided (power supply not included, use Ness POW310)
b) PoE via the optional PoE adapter (101-504-POE) allowing ethernet or WiFi connectivity.

Inclusions:
ELK-7TS Touchscreen
Wall mounting plate
Mounting hardware
Wiring harness for 12V power supply
Quick Start Instruction Card

PLEASE NOTE
This product requires a high level of IT and electronics technical expertise for correct installation and operation.
Due to the specialized nature of this product Ness offers only limited technical support and may be unable to assist with complex networking issues.

Brochure

Manual

ELK-7TS

Discover ELK-7TS 7” touchscreen for M1 Cross Platform Control.
An all-new M1 touchscreen network device introduces users to a fresh and modern interface for M1 systems.

While the GUI operates as a sophisticated keypad ELK-7TS is in fact a LAN device and requires connection to the same network as the M1 controller. The M1 must be network enabled using the optional 101-244 IP232 Serial-to-ethernet bridge.

  • 7” HD Display (1024 x 600 Resolution)
  • Responsive capacitive touchscreen, with 5-point multi-touch
  • G+G Gorilla Glass screen
  • Wi-Fi Connectivity (802.11b/g/n 2.4GHz)
  • Optional ethernet connectivity
  • Dimensions: 192 x 115 x 14mm

Power options:
a) 12VDC 1A via the cable loom provided (power supply not included, use Ness POW310)
b) PoE via the optional PoE adapter (101-504-POE) allowing ethernet or WiFi connectivity.

Inclusions:
ELK-7TS Touchscreen
Wall mounting plate
Mounting hardware
Wiring harness for 12V power supply
Quick Start Instruction Card

PLEASE NOTE
This product requires a high level of IT and electronics technical expertise for correct installation and operation.
Due to the specialized nature of this product Ness offers only limited technical support and may be unable to assist with complex networking issues.
