Manufacturer: Ness Corporation


Ness M1 Replacement Control Module
SKU: 101-201

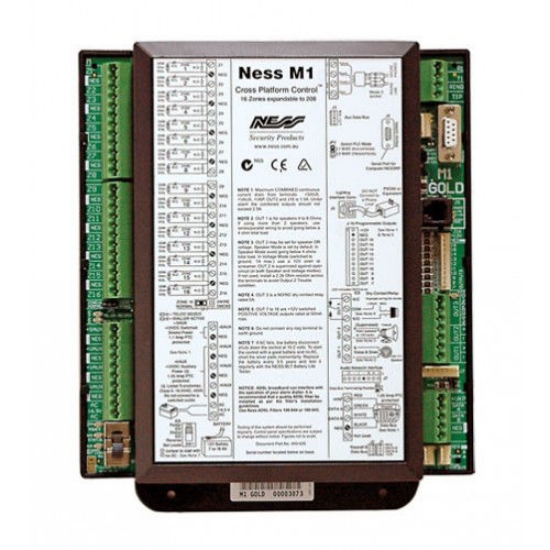

Ness M1 Gold Control Module

Replacement board only, requires housing, power supply and peripherals (not included).


Powerful Automation

  • HVAC: heating/ cooling RCS, Aprilaire, etc
  • Whole House Automation: Home Theatre / DVD / Audio Crestron, AMX, Control 4 etc
  • Lighting Control: 2 way C-Bus Interface, Dynalite, iControl, X10, UPB, etc

The Ness-M1, together with the Ness-RP Automation Programming software offers powerful, easy to set up and manage, lifestyle enhancement features. The automation programming allows mixing and matching of lighting components, outputs (relays or voltage), thermostats, temperature sensors, and all the security inputs and features to integrate functions that add value and appeal to the owner/user/manager.
Whenever/And/Then rules can be set to turn on and off in response to a time of day, a certain sensor, or the arm/ disarm status of the system. Outputs can be set to control door strikes, irrigation sprinklers, circulating pumps, valves, outdoor signage, refrigeration etc. Automation tasks can also be driven by the built-in astronomic clock which calculates sunset/sunrise depending on your geographic location and also takes daylight savings into account.
You dream it, M1 does it!

Security System

  • Input Expansion
  • Output Expansion : Sprinklers / Front Gate / Siren / Garage Door / Strobe Lights / Machinery / Electric Locks / Industrial Controls
  • 16 zones onboard: expandable to 208 zones

M1 can be expanded up to 208 inputs using up to 12 add-on Input Expanders. Each input can be programmed to be Normally Open, Normally Closed, End Of Line, High Security 4 State End Of Line or Analogue to suit a huge variety of detection and sensing devices such as motion sensors, mechanical contacts, fluid level sensors, gas sensors, smoke detectors, temperature sensors and many more.
Up to 12 Input Expanders, each with 16 zones can be added anywhere along the 4 wire data bus. The high-end security features include multiple user codes, multiple area operation and multiple arming levels such as Away, Stay, Stay Instant, Night, Night Instant, Holiday mode and other combinations. The onboard telephone dialler is capable of reporting alarm events to a central monitoring station and/or several private telephone numbers such as mobile phones.

Total Building integration

  • Security
  • Access Control
  • Building Management: 10,000+ Access Control Doors
  • 50,000+ Users
  • 32 Areas
  • 1000+ Inputs

Up to four M1 systems can be networked and interface with the Ness IDTeck suite of powerful access control systems. The range includes everything from a standalone single-door controller to networked systems up to 10,000+ doors. There are many integrated security and access control features available such as denying access to a user if an M1 security area is armed and the user does not have security system disarm rights, regardless of the user’s access control time schedule and access level. Once the area is disarmed, the user with the right access level will now be granted access. The powerful and user-friendly Ness Starwatch application software suites provide total solutions for access control and security management tool, time attendance, site management, lift control and centralised user management. The standard Ness Starwatch software includes user management of both access control credentials as well as M1 security codes. It includes alarm graphics for quick identification of alarm points, access doors and security areas control both for alarm event identification as well as user control of these points. It also includes a comprehensive report generation of access control and security management events from IDTeck controllers and Ness M1 systems.

  • Large zone capacity, expandable to 208 zones.
  • Two Way Listen-in interface.
  • Flash Memory - Allows field updates to firmware.
  • RS-232 serial port to interface to Computers and other devices (expandable to 8).
  • Time/Date stamped 512 event history log.
  • Menu-driven keypad programming - no manual required!
  • Voice announcement of alarms, zone descriptions, status, etc. *
    • 500+ Word/Phrase Vocabulary.*
    • Link up to 6 words/phrases per announcement.*
    • 10 custom recordable words/phrases.*
  • 13 On-Board Outputs: 1 voice driver/siren, 1 siren driver/voltage, 1 Relay, and 10 voltage outputs - expandable to 208 outputs.
  • Includes Fire alarm verification routine.
  • Can be partitioned into 8 separate areas and accounts.
  • 199 User Codes (4 or 6 digits) with assignable authorities.
  • Arm levels: Away, Stay, Stay Instant, Nite, Nite Instant, Vacation.
  • Plug-in terminals make service and pre-wire simple.*
  • Hardware “watchdog” and nonvolatile EEPROM memory.
  • Supervised phone line.
  • Supervised alarm output.
  • Supervised power supply overcurrent.

* Some features are not available on all models.



  • True V.22 bis Modem for fast reliable upload/download.
  • Optional Ethernet port for user operation, programming.
  • Built-in Telephone Remote makes any phone a keypad.*
  • Integrated Voice Dialler uses vocabulary or custom word/phrases.*
  • Digital Dialler: SIA, Contact ID, 4 + 2, and Pager.*
  • Installer telephone (buttset) test feature.
  • Ness-RP PC programming software includes conflict resolution to easily highlight differences between control and PC. Connection methods include Dial-up (including automatic answering machine bypass), ethernet, or local from RS-232 port or house phone jack.

  * Some features are not available on all models.



  • Create lifestyle enhancing comfort, convenience, and security.
  • Logic programming with Ness’ powerful “Whenever/ And/Then” RULES Programming allows almost any imaginable operation. No need to chain rules together. Any
  • single “Whenever” event can have one or more ANDs and THENs (conditions and commands).
  • Rules utilize easy to understand text-based references.
  • Control lighting using RS-232 serial or 2-way Power Line Control (PLC) ports for On, Off, Dim, All On, All Off commands.
  • Sunset/Sunrise calculation and activation / onboard astronomic clock.
  • Transmit and receive custom serial ASCII strings.
  • Read Temperature Sensors and communicate with Thermostats.
  • Turn on Tasks, Lights, Outputs via Keypad or Telephone Remote or via the Ethernet Interface and “Virtual Keypad”.
  • IR integration to control any device that supports IR remote control, (air con, CD, DVD, TV etc).
  • Networks with a broad range of other systems.



  • Heavy Duty 2.5 Amp power supply w/ 1.5 Amp continuous
  • Master power switch and Low battery disconnect.
  • PTC (fuseless) resettable overload protection.
  • Multiple auxiliary power terminals.

Ness M1 Gold Control Module

Replacement board only, requires housing, power supply and peripherals (not included).
