Manufacturer: Ness Corporation

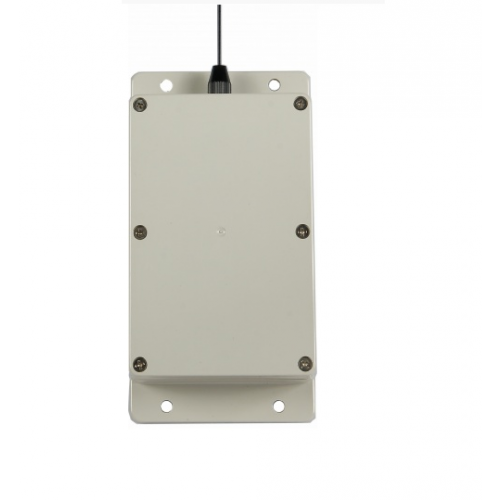

WEIGAND RECEIVER 4 CHANNEL OUTDOOR MODEL

4 Channel Wiegand Receiver
SKU: 101-111

ACTIVOR 4 Channel Wiegand Receiver to receive signals from 2 & 4 button Activor Wiegand Transmitters (Ness Part No 101-107, 108, 109 and 101-110)

The receiver provides a separate Wiegand Output for each button on the remote control.

  • Wiegand 26bit, 4 channels
  • 433Mhz; other frequencies available on request
  • The option of site-code-verification or non-code-verification (all pass through)
  • Outdoor version: IP 66
  • Each channel has an onboard LED to indicate data passage
  • 4-channel standard 26bit Wiegand output
  • Frequency: 433MHz
  • Voltage: 9-15VDC
  • Current: 15mA
  • The option of pass-through or site-code verification
  • IP66 rating for RTW01
  • Dimensions: 190mm (L) x 100mm (W) x 45mm (H)

ACTIVOR 4 Channel Wiegand Receiver to receive signals from 2 & 4 button Activor Wiegand Transmitters (Ness Part No 101-107, 108, 109 and 101-110)

The receiver provides a separate Wiegand Output for each button on the remote control.

  • Wiegand 26bit, 4 channels
  • 433Mhz; other frequencies available on request
  • The option of site-code-verification or non-code-verification (all pass through)
  • Outdoor version: IP 66
  • Each channel has an onboard LED to indicate data passage
