WEIGAND RECEIVER 4 CHANNEL I/D

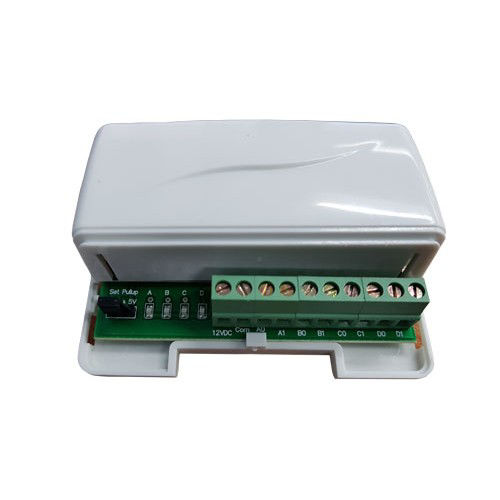

4 Channel Wiegand Receiver

SKU: 101-112

ACTIVOR 4 Channel Wiegand Receiver to receive signals from 2 & 4 button Activor Wiegand Transmitters (Ness Part No 101-107, 108, 109 and 101-110)

The receiver provides a separate Wiegand Output for each button on the remote control.

Wiegand 26bit, 4 channels
433Mhz; other frequencies available on request
The option of site-code-verification or non-code-verification (all pass through)
Indoor version: compact design; can be easily fitted into a third party cabinet
Each channel has an onboard LED to indicate data passage

ACTIVOR 4 Channel Wiegand Receiver to receive signals from 2 & 4 button Activor Wiegand Transmitters (Ness Part No 101-107, 108, 109 and 101-110)

The receiver provides a separate Wiegand Output for each button on the remote control.

Wiegand 26bit, 4 channels
433Mhz; other frequencies available on request
The option of site-code-verification or non-code-verification (all pass through)
Indoor version: compact design; can be easily fitted into a third party cabinet
Each channel has an onboard LED to indicate data passage
