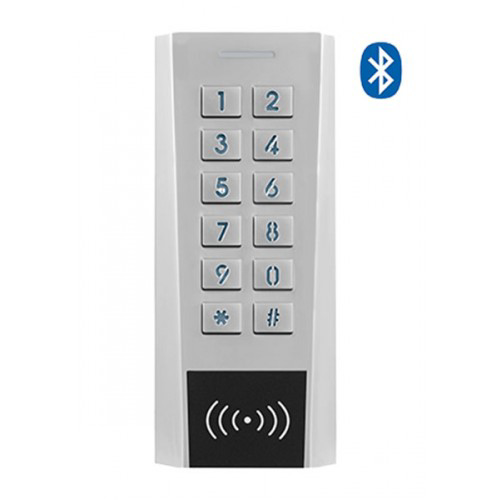

O - NESS KX4 ULTRAPROX KEYPAD

Keypad and Card Reader with Bluetooth

DISCONTINUED PRODUCT - MINIMAL STOCK REMAINING - ASK YOUR NESS BRANCH FOR AVAILABILITY BEFORE ORDERING

SKU: 101-091B

Overview
Features
Specifications
Downloads

Multifunction Access Controller - With BlueTooth

KX3-BT is a keypad access control with embedded Bluetooth module, which can access doors by card/password/smartphone, the unique app is compatible with both Android and iOS.

With both relay output for stand-alone operation AND Wiegand output for when connecting to 3rd party Access Controllers or security systems, this vandal-resistant, weatherproof access system provides great flexibility for any application. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy vandal Alloy electroplated case.

Power via either 12V~28V AC or DC, IP66 Weather protection rating and with each key being metal with backlighting for ease of use in low light conditions, this keypad has it all for stand-alone operation using it an onboard relay or for a 'slave' keypad using its Wiegand O/P into a 3rd party access controller.

One relay, 1000 users
Wiegand 26~37 bits input & output
Access modes: Card, PIN, Card + PIN, Multi Cards/PINs, Mobile phone
PIN length: 4~6 digits
Card type: KX3-BT(EM): 125KHz EM card
Pulse mode, toggle mode
2 keypads connected together support interlock for two doors
With Bluetooth, APP configuration.

User Capacity Common User Panic User	1000 998 2
Operating Voltage Idle Current	12~28V AC/DC < 35mA
Proximity Card Reader Radio Technology Read Range	EM 125KHz Proximity Card 2~6 cm
Wiring Connections	Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output
Relay Adjustable Relay Output Time Lock Output Load	One (NO, NC, Common) 0~99 Seconds (5 seconds default) 2 Amp Maximum
Wiegand Interface Wiegand Input Wiegand Output PIN Output	Wiegand 26~37bits 26~37bits 26~37bits 4 bits, 8 bits(ASCII), 10 digits Virtual Number
Environment Operating Temperature Operating Humidity	Meets IP66 -40 ^oC ~ 60 ^oC (-40 ^oF ~ 140 ^oF) 0%RH ~ 98%RH
Physical Colour Dimensions Unit Weight Shipping Weight	Zinc-Alloy Silver 13.4L x 5.5W x 2.1H (cm) 340g 420g
