D16XD WITH NAVIGATOR KEYPAD

D16x Deluxe PSTN dialler control panel

SKU: K-6323

Overview
Features
Specifications
Downloads

The New Face of your Alarm System

Ness D16XD Navigator Panel provides both the user and the installer with unrivalled ease of use. Its self-explanatory operation guides provide you with plain English displays and intuitive touch screen operation.

Ness Navigator makes it easy to view your entire system. Personalise the name of your rooms, get help and prompts for arming/disarming, home automation features, emergency alarms and much more.

Supplied With

Ness Navigator Touch Screen Keypad
D16X panel
20VDC Power Supply
Battery
Telephone Lead
Housing
Manuals

Made In Australia by NESS

3.5" colour LCD Touch Screen

The easiest to read alarm keypad ever!

Superb contemporary design
The clean, crisp design adds elegance to any decor in the home or office.

Plain English event displays by name
Add your own text description text descriptions for your alarm zones. Choose from the built-in library or add your own.

Dealer details page
Never lose a business card again! Your installer can leave his contact details in your Navigator.

Advanced English Programming
Navigator makes everyday programming such as changing user codes or timers a breeze.

Touch Screen Age
Navigator is a true Price-Performance breakthrough offering touch screen technology for not much more than a traditional keypad.

Designed and Manufactured in Australia
Navigator is proudly a genuine Australian product - conceived, born and raised at our Seven Hills NSW manufacturing facility.

Navigator Touch Screen
DIMENSIONS (W - H - D)	108 x 86 x 15 mm
DISPLAY TYPE	3.5" Colour lCD
DISPLAY RESOLUTION	320 x 240
TOUCH SCREEN	Touch sensitive surface
COMPATIBILITY	D8XD, D16XD
OPERATION VOLTAGE	12VDC supplied by the control panel
DATA	2 wire proprietary Ness data bus
Navigator Control Panel D16XD
BOX DIMENSIONS (W - H - D)	235 x 300 x 90 mm
POWER INPUT	17VAC or 20VDC
AUX POWER OUTPUT	13.8v DC @ 800mA
QUIESCENT CURRENT DRAW	80mA with 1 keypad
RECHARGEABLE BATTERY	12 volt 7.0 Amp/hour Sealed lead Acid
BATTERY CHARGING CURRENT	350mA maximum, current limited
DYNAMIC BATTERY TEST	Backup battery is tested under load, hourly and on arming
FUSES	2 Amp auto resetting / Siren output & Reset output. 500mA auto resetting / 12 volt auxiliary outputs. 200 mA auto resetting / Strobe output
ZONE OUTPUTS	16 zone inputs. 2 x 24hr tamper inputs
END OF LINE RESISTOR	Choice of 12 programmable values including N/C. Default 2200 Ohms (2.2k)
MAXIMUM KEYPADS	3 x Navigator Touch Keypads max.
INTEGRATED RADIO OPTIONS	Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 8 radio zones
SERIAL HEADER	Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data
INTEGRATED ACCESS CONTROL	Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers
SIREN OUTPUT	On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers
STROBE OUTPUT	12v DC timed output. Maximum 2 x 1 Watt strobe lights
RESET OUTPUT	12v DC timed output. Max. 3 x 12v piezo screamers
EQUIPMENT POWER OUTPUT	13.8v DC output for powering detectors and other equipment. Maximum 500mA
AUX READER	Multi-pin connector provides outputs Aux1, Aux2, Aux3, Aux4, 12v DC

The New Face of your Alarm System

Ness Navigator makes it easy to view your entire system. Personalise the name of your rooms, get help and prompts for arming/disarming, home automation features, emergency alarms and much more.

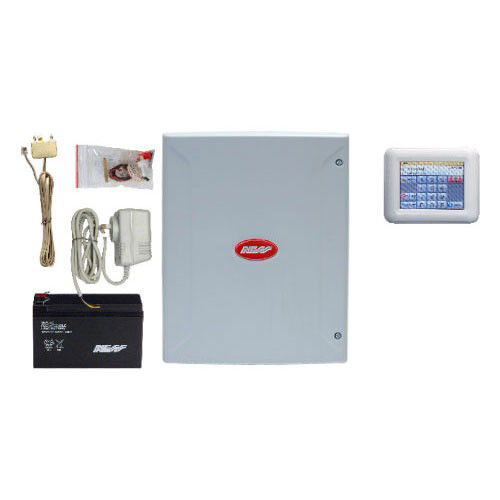

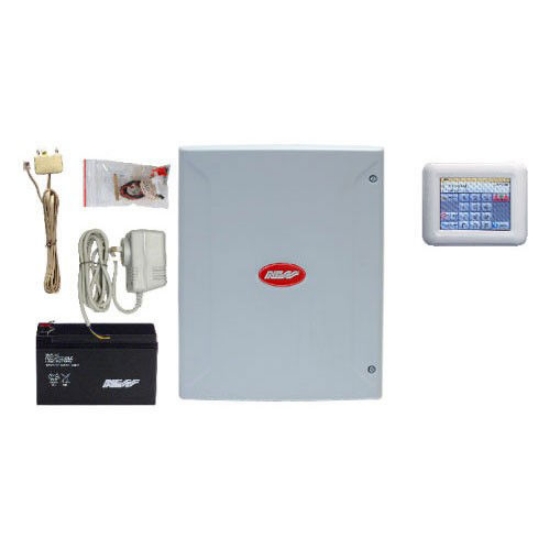

Supplied With
