Sorry - this product is no longer available

Manufacturer: Hikvision

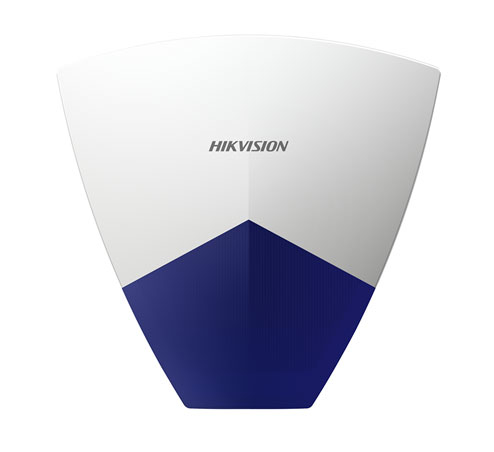

HIK DS-PSG-WO-433 Wireless OutdoorSiren + Battery

HIK DS-PSG-WO-433 W/BATTERIES
SKU: K-114-203

Wireless external siren GEN1

  • RF 433MHz, AES-128 encryption Two-way wireless communication
  • Reports exception automatically
  • Adjustable volume: low,medium, and high
  • Front and rear panel tamper-proof
  • Protection level: IP65
  • Outdoor installation
  • Flashing blue LED for alarm indication
  • 3 kinds of alarm sounds: fire alarm, intrusion alarm, and panic alarm

Hardware Features

  • Tamper-ProofFront and rear

Electrical Characteristics

  • Power Supply4 CR123A Batteries (default) or 12 VDC
  • Operation Humidity10% to 90% (no condensing)
  • Operation Temperature-25 °C to +60 °C (-13 °F to +140 °F)
  • Power ConsumptionStatic consumption: < 20 uA
  • Battery Life Span5 years in stand-by status

Wireless Transmission

  • RF Speed10 kbps
  • RF Power10 dBm
  • RF Frequency433MHz
  • RF Modulation2GFSK
  • RF Distance800 m (open area)

Display

  • IndicatorBlue (on front panel), Green/Red (on PCB)

General

  • IP RateIP65
  • Installation MethodWall mounting
  • Dimension(WxHxD)220.5 × 205.2 × 46 mm (8.68" × 8.08" × 1.81")
  • Shell MaterialPC+ABS
  • ColorWhite and blue

Brochure

Wireless external siren GEN1

  • RF 433MHz, AES-128 encryption Two-way wireless communication
  • Reports exception automatically
  • Adjustable volume: low,medium, and high
  • Front and rear panel tamper-proof
  • Protection level: IP65
  • Outdoor installation
  • Flashing blue LED for alarm indication
  • 3 kinds of alarm sounds: fire alarm, intrusion alarm, and panic alarm
