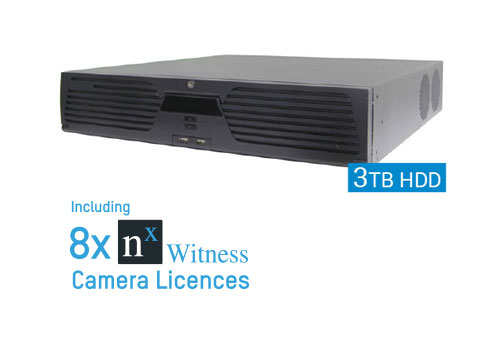

Ness VMS3 Server C/W 8 Nx 3TB

Ness VMS Server 3 (768MB) with 8 NX Witness Camera Licences & 3TB HDD
SKU: K-104-VMS3-8A

VMS Video Server is based on the new T8 Server development platform. It is designed for professional IP video surveillance. It is featured with well performance CPU processing, encoding and decoding, and storage capability.

768MB/S Bandwidth capability supports up to 32 IP cameras. Example based on 32+ x 4MP cameras using H.264 encoding. Fewer or more cameras can be used depending on your own framerate and resolution requirements. Try different scenarios using the handy NX Witness Bandwidth Calculator http://networkoptix.com/calculator/

Supports up to 8 x 1TB/2TB/3TB/4TB/5TB/6TB or 8TB HDD (Supplied with 1 x 3TB HDD)

Linux O/S and 8 NX Camera Licences pre-installed and can be expanded as required (Refer Ness Project team for specific requirements)


Note1: This device is not an NVR. A USB Keyboad and monitor (not supplied) may be required for setup. The monitor is usually only required for adjustment of server admin settings.
Note2: VMS Servers are designed to record and 'serve' video streams to multiple remote clients. NX Client software should be installed on separate PCs.

MAKES DESIGNING AN IP VIDEO SYSTEM EASY.

  • 1 device for every 32 IP cameras.
  • Cost effective for any size system.
  • Reduce power and network cabling.
  • Configurable storage (Supports up to 8 x 8TB HDD) - Supplied with 1 x 3TB HDD.
  • 2 x USB 2.0 Interfaces
  • VGA Output
  • HDMI Output



POWERFULLY SIMPLE EMBEDDED DEVICE.

  • Intel® Xeon® Processor E3-1225 v5, 3.30 Ghz (8M Cache, 3.30 GHz) with low power consumption and high performance
  • 8GB RAM
  • Automatic Failover to additional servers on a system.
  • 8 x Nx Witness Licenses Included
  • 8 x HDD capacity
  • 1.5U Chassis / 19" Rack Mount



Supplied With

  • 1 x Ness 104-VMS3 Server
  • 8 x 104-634 Nx Camera Licences
  • 1 x 895-185 3TB HDD



Processor: Intel® Xeon® Processor E3-1225 v3 (8M Cache, 3.30 GHz)
Memory: 8GB RAM
Video/Audio output: HDMI- 1
1 HDMI1 output, resolution: 1024 × 768/60Hz, 1280 × 720/60Hz, 1280 × 1024/60Hz,
1600 × 1200/60Hz, 1920 × 1080/60Hz.

HDMI- 2
1 HDMI1 output, resolution: 1024 × 768/60Hz, 1280 × 720/60Hz, 1280 × 1024/60Hz,
1600 × 1200/60Hz, 1920 × 1080/60Hz.

VGA
1, resolution: 1024 × 768/60Hz, 1280 × 720/60Hz, 1280 × 1024/60Hz,
1600 × 1200/60Hz, 1920 × 1080/60Hz.
HDD interface: 8 x "hot"-Swappable SATA Interface, Up to 8TB for each HDD,
Support enterprise-class, surveillance-class and desktop HDD.
External interface: RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface.
2 x USB 2.0 interfaces in front panel and 2 USB 3.0 interface in rear panel.
Other
Power supply: 100 ~ 240VAC
Consumption:
(without HDD)
≤ 100W
Working temperature: 0ºC ~ 50ºC
Chassis: 2U chassis
Dimensions (W×D×H): 445mm × 470mm × 90mm
Weight (without HDD): ≤ 8 Kg

Brochure

Datasheet
