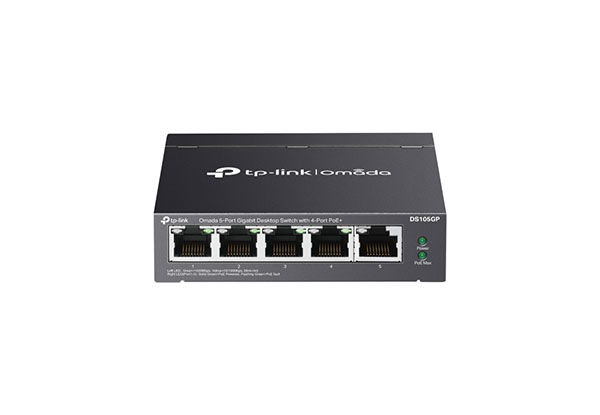

TP-Link DS105GP 5-Port Gigabit PoE Switch 65W

TP-LINK DS105GP 5-PORT GIGABIT POE SWITCH 65W

SKU: 126-202

Overview
Specifications
Downloads

DS105GP

Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+

5× 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for all PoE ports^*
Up to 250m (820ft) data and power transmitting range under Extend Mode^**
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and Play. No configuration or central management required.^†

HARDWARE FEATURES
Interface	• 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate	7.44 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W
Mac Address Table	2K
Jumbo Frame	16 KB
Switching Capacity	10 Gbps
Dimensions ( W x D x H )	3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption	• 3.44 W (220/50 Hz. no PD connected) • 74.49 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation	• 11.73 BTU/h (no PD connected) • 254.01 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES
Advanced Features	• Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4)
Transfer Method	Store-And-Forward

SOFTWARE FEATURES

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-4)

Transfer Method

Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• DS105GP • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

OTHERS

Certification

FCC, CE, RoHS

Package Contents

• DS105GP
• Power Adapter
• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

DS105GP

Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+

5× 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for all PoE ports^*
Up to 250m (820ft) data and power transmitting range under Extend Mode^**
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and Play. No configuration or central management required.^†
