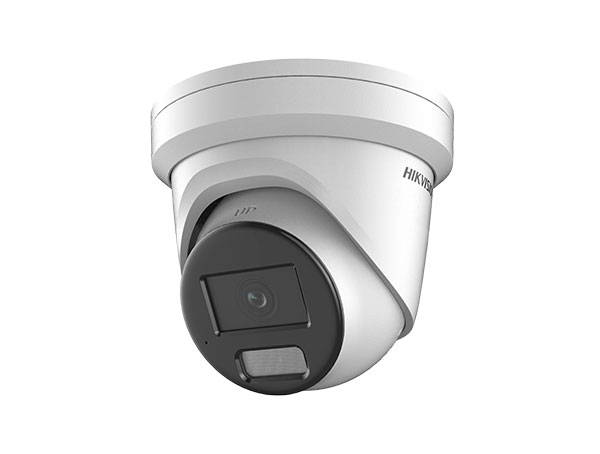

Hik DS-2CD2367G2H-LIU 6MP ColorVu Hybrid Turet 2.8

Camera

• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution3200 × 1800
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°

  4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°

• Lens MountM16
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field

  2.8 mm: 3.3 m to ∞

  4 mm: 3.8 m to ∞

DORI

• DORI

  2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

  4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz:

  25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  24 fps (3200 × 1800)

  30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio

• Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-U: Yes

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• SNR≥ 52 dB
• Wide Dynamic Range (WDR)130 dB
• Privacy Mask4 programmable polygon privacy masks

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Built-In Microphone-U: Yes
• Reset KeyYes

Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
• Smart Event

  Scene change detection

Deep Learning Function

• Face CaptureYes
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

General

• Power

  12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 8 W

• Material

  Cover: Metal, main body: Metal

• DimensionØ138.3 mm × 115.4 mm (Ø5.4" × 4.5")
• Package Dimension170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
• WeightApprox. 770 g (1.7 lb.)
• With Package WeightApprox. 1040 g (2.3 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat,mirror,password reset via email,pixel counter,anti-banding
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMC

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• EnvironmentCE-RoHS: 2011/65/EU
• ProtectionIP67: IEC 60529-2013
