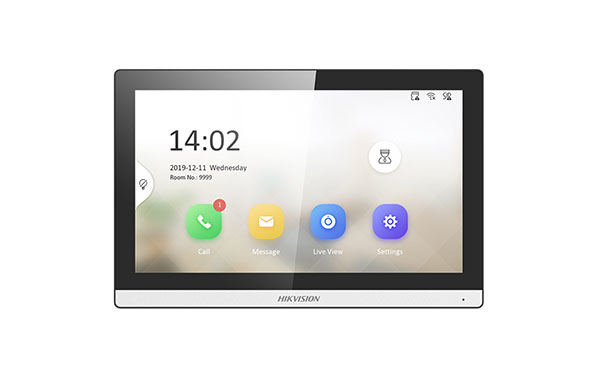

Hikvision DS-KH6350-WTE1 7" Touch Screen Room Station Black

System Parameters

• Operating SystemEmbedded Linux operation system
• ROM32 MB
• RAM128 MB
• CPUEmbedded processor

Display Parameters

• Screen Size7-inch colorful TFT screen
• Operation MethodCapacitive touch screen
• TypeColorful TFT screen
• Resolution1024 × 600

Video Parameters

• Lens/
• Resolution/
• FOV/
• WDR/
• Video Compression Standard/
• Focal Length/

Audio Parameters

• Audio Compression StandardG.711 U, G.711 A
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

Capacity

• Event Capacity200
• Notice Capacity16
• Linked Indoor Extensions Capacity5

Network Parameters

• Communication ProtocolTCP/IP, SIP, RTSP
• Wired Network10/100 Mbps self-adaptive
• Wi-Fi StandardWi-Fi 802.11 b/g/n
• Bluetooth Version/
• 3G/4G Standard/
• Zigbee/

Device Interfaces

• Alarm Input8-ch alarm inputs
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-4851
• USB/
• TF CardMax to 128 G
• Alarm Output2
• Power Interface1

General

• Button0
• InstallationWall mounting, table mounting
• Indicator0
• Weight

  With package: 683 g

  Without package: 355 g

• Protective Level/
• Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity10% to 90%
• Dimensions175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")
• Battery/
• Application EnvironmentIndoor
• Power Consumption≤ 8 W
• LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
