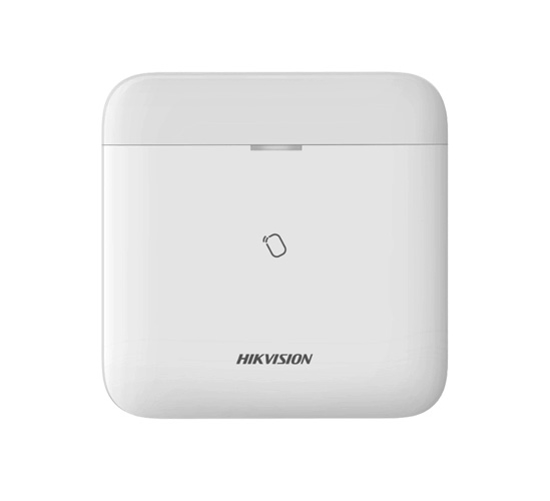

Picture of Hikvision DS-PWA96-M-WB AX PRO Wireless Control Panel

Sorry - this product is no longer available

Manufacturer: Hikvision

Hikvision DS-PWA96-M-WB AX PRO Wireless Control Panel

HIKVISION DS-PWA96-M-WB WIRELESS CONTROL PANEL 4G

SKU: 114-250

AX PRO (433MHz) GEN2

TCP/IP, Wi-Fi, and 3/4G network
New generation wireless protocol: Tri-X/Cam-X
Long RF transmission distance
Two-way communication with AES-128 encryption
Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers & keypads.
Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
Voice prompt
Configuration via Web client, mobile client, and Convergence Cloud
Hik-Connect and Hik-ProConnect configuration depends on the user access level
Pushes alarm notification via messages or phone calls
Views live videos from Hik-Connect
Alarm video clips via emails and APP
Supports LED indicator to indicates system status
4520 mAh lithium backup battery
SIA-DC09 protocol, and supports both Contact ID and SIA data format
Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Software Features

Tag48
Area32
Zones96 (up to 48 PIRCAMs)
Onboard Video Clips4
Installer1
User46
Admin1
Voice PromptSupported
Loudspeaker Built InSupported
Tag Reader Built InSupported
Memory Log Stored5000
Programming ToolsHik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
Firmware UpgradeAPP/Web Portal
Arm ModesAway/Stay
Automatic Arm/Disarm TimersSupported
Forced Arming With Open ZonesSupported
Diagnostics Via The APP Or WebSupported
ARC Protocol
SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
Supports video verification and remote control
User APP For OperatingSupported
Installer APP For ProgrammingSupported
Web Server For Maintenance (Offline Configuration)Supported

Hardware Features

RS232 OutputSupported
SIM SlotDual

RF Transmission

Two-Way Wireless CommunicationSupport
RF Frequency433Mhz
Wireless SecurityFrequency Hoping 128 AES Encryption
3/4G On BoardSupported

Electrical Characteristics

Power SupplyBuilt in power supply
Battery TypeBuilt in on board Battery Li
Battery Life Span12 hours

Wireless Transmission

Wired NetworkSupported
Wi-Fi StandardSupported

Display

LEDs StatusArm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

Operation Temperature-10 °C to +55 °C
Shell MaterialPlastic
Dimension(WxHxD)170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
557.5 g(19.7 oz)
ColorWhite

Device Management

Keyfob48
Wireless Sounder6
Keypad8 (Including Tag reader)
Wireless Repeater4
PIR CamSupported

Brochure

How does AX PRO work on Hikcentral

How to configure wireless keypad in AX PRO wireless control panel

How to add tag in AX Pro wireless control panel

How to login AX PRO wireless control panel by browser

How to add detectors to AX PRO wireless control

How to reset AX PRO panel by reset button

How to configure automation device in AX PRO wireless

How to upgrade AX PRO wireless control panel by browser

How to configure repeater in AX PRO wireless control panel
