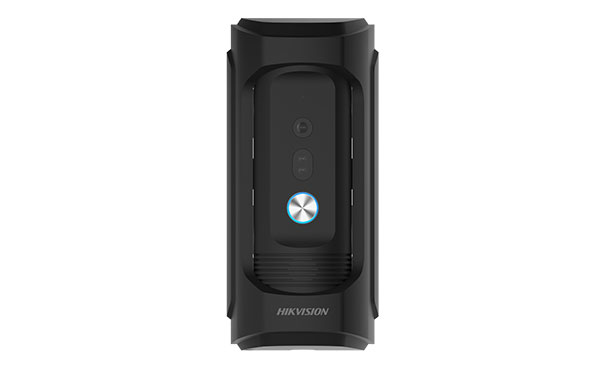

Hikvision DS-KB8113-IME1(B) Vandal Resistant Door Stn

Video Parameters

• Video Compression StandardH.264

Audio Parameters

• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation

Network Parameters

• EthernetPoE, 10/100 Mbps self-adapted
• Network ProtocolTCP/IP, RSTP

Device Interfaces

• Alarm Input1
• Debugging Port1

General

• Power Supply

  IEEE802.3af, standard PoE

  12 VDC

• Power Consumption＜ 10 W
• Working Temperature-30° C to +50° C(-22° F to 122° F)
• Working Humidity10% to 90%
• Impact ProtectionIK 09
• Ingress Protection LevelIP 65
• Dimensions (L X W X H)161.85 mm × 24.13 mm × 53.2 mm(6.37" × 1.02" × 2.09")
• InstallationSurface mounting
