Manufacturer: Hikvision

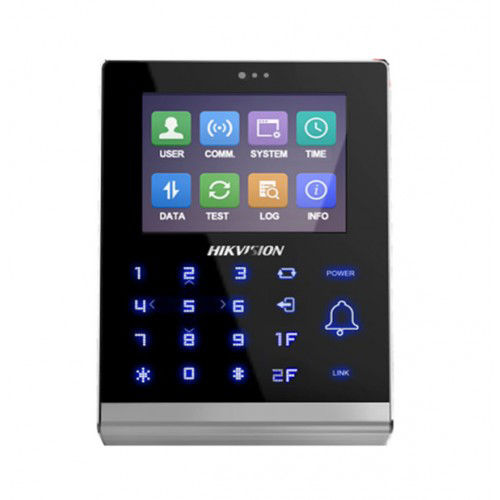

HIKVISION DS-KIT105M-C

Stand Alone Access Control Terminal
SKU: 114-140

Stand Alone Access Control Terminal

DS-K1T105 is a series of standalone access control terminal, designed with a 2.8-inch LCD display screen. It supports two network communication methods (TCP/IP, and Wi-Fi), and supports offline operation. It also includes 2MP HD camera for logging images of all access attempts.


Supplied with 12VDC Power Supply

Can be programmed via the keypad on the terminal or programmed and managed by iVMS4200 Software.
  • Supports Local activation
  • Supports communicating with 4 control clients simultaneously; Supports uploading real-time events
  • Gets offline events: Avoids events losing
  • Touch mode and blue light display technique for keypad
  • Stand-alone settings for the terminal
  • 2.8-inch LCD display screen to display the time, the date, etc
  • Max. 100,000 valid card No., and Max. 300,000 access control events storage
  • Communication via a wired network (TCP/TP) or Wi-Fi
  • Face detection and picture capturing function implemented by built-in 2MP camera
  • Supports multiple doors opening modes (a card, card + password, exit button, etc.)
  • Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
  • Supports Mifare card reading
  • 2.8-inch LCD display screen to display the time, the date, etc
  • Accurate data and time display provided by a built-in electronic clock and watchdog program to ensure the basic functionality of the terminal
System Parameters
Card Reading Frequency: Mifare Card (DS-K1T105M/M-C): 13.56MHz
Valid Card/ Swiping Record: 100,000 Cards and 300,000 Swiping Card Records
Operation System: Linux
Storage: 256M Storage
Card Reading Mode:
Supports Mifare card reading, including card No. reading & writing function (DS-K1T105M/M-C)
Built-in Micro SD Card: Max.32G
Camera: 2MP
Processor: ≥1GHz, 32 Bit High-performance Processor
Device Interfaces
Accessible Card Reader: Card Reader
Communication Mode: TCP/IP, Wi-Fi, RS-485, and Wigand 26/34 (under the card reader mode only)
Output Interface: Lock Relay × 1, Alarm Relay × 1
Transmission Rate: TCP/IP, WIFI: 10/100Mbps Self-adaptive,
RS-485: 19200 bps-N-8-1
Input Interface: Tamper Alarm × 1, Exit Button × 1, Door Sensor × 1, Alarm Input × 2
General
LCD Screen: 320×240 LCD-TFT Display Screen
Working Current: 500mA ( without Locks)
Key Board: Keyboard (Back light)
Power Supply: 12VDC
Audio: Loudspeaker
LED Indicator: Power/Status
Certification: CE, FCC
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 122mm × 82mm × 23mm (4.8'' × 3.2'' × 0.9")
Weight: 280g (9.88lb)

Brochure

Stand Alone Access Control Terminal

DS-K1T105 is a series of standalone access control terminal, designed with a 2.8-inch LCD display screen. It supports two network communication methods (TCP/IP, and Wi-Fi), and supports offline operation. It also includes 2MP HD camera for logging images of all access attempts.


Supplied with 12VDC Power Supply

Can be programmed via the keypad on the terminal or programmed and managed by iVMS4200 Software.
