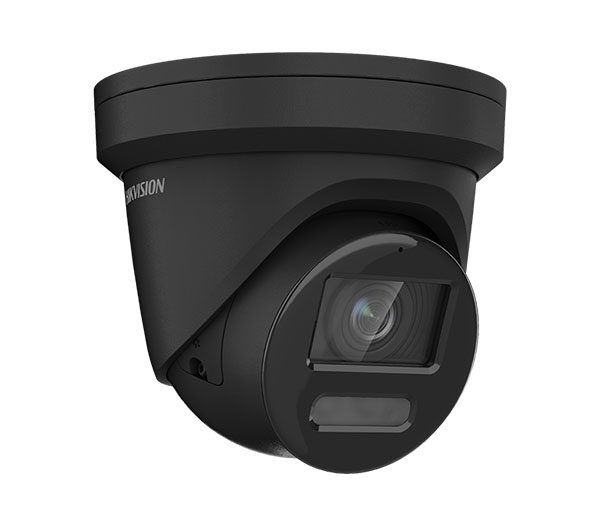

HIK DS-2CD2387G2-LU 8MP ColorVu Turret 2.8mm Blk

Camera

• Image Sensor1/1.2″ Progressive Scan CMOS
• Max. Resolution3840 × 2160
• Min. IlluminationColor：0.0005 Lux @ (F1.0, AGC ON)
• Shutter Speed1/3 s to 1/100,000 s
• Day & Night24/7 Color imaging
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°

  4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°

• Lens MountM16
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field

  2.8 mm: 3.1 m to ∞

  4 mm: 3.6 m to ∞

DORI

• DORI

  2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

  4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator

• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes

Video

• Main Stream

  50 Hz:

  25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  24 fps (3840 × 2160)

  30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio

• Environment Noise Filtering-U: Yes
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR)130 dB
• Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
• Built-In Microphone-LU: Yes

Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

  Scene change detection

• LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email

Deep Learning Function

• Face CaptureYes

General

• Power

  -L:

  12 VDC, 0.42 A, max. 5 W

  PoE: 802.3af, 36 V to 57 V, 0.17 A to 0.11 A, max. 6.0 W

  -LU:

  12 VDC, 0.46 A, max. 5.5 W

  PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W

• MaterialCover: metal, main body: metal
• DimensionØ138.3 mm × 120.1 mm (Ø5.4" × 4.7")
• Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
• Approx. 870 g (1.9 lb.)
• With Package WeightApprox. 1160 g (2.6 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
• Software ResetYes

Approval

• EMC

  FCC (47 CFR Part 15, Subpart B)

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

  RCM (AS/NZS CISPR 32: 2015)

  IC (ICES-003: Issue 7)

  KC (KN32: 2015, KN35: 2015)

• Safety

  UL (UL 62368-1)

  CB (IEC 62368-1: 2014+A11)

  CE-LVD (EN 62368-1: 2014/A11: 2017)

• Environment

  CE-RoHS (2011/65/EU)

  WEEE (2012/19/EU)

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67: IEC 60529-2013
